Driveshaft Right

Drive shaft right






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- the wheel Refer to: Wheels Service and Repair
- Engine Rear Lower Support Insulator RH Refer to: Engine Rear Lower Support Insulator RH, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Engine Rear Lower Support Insulator RH




Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

Loosen wheel spindle Refer to: Front control arm, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC

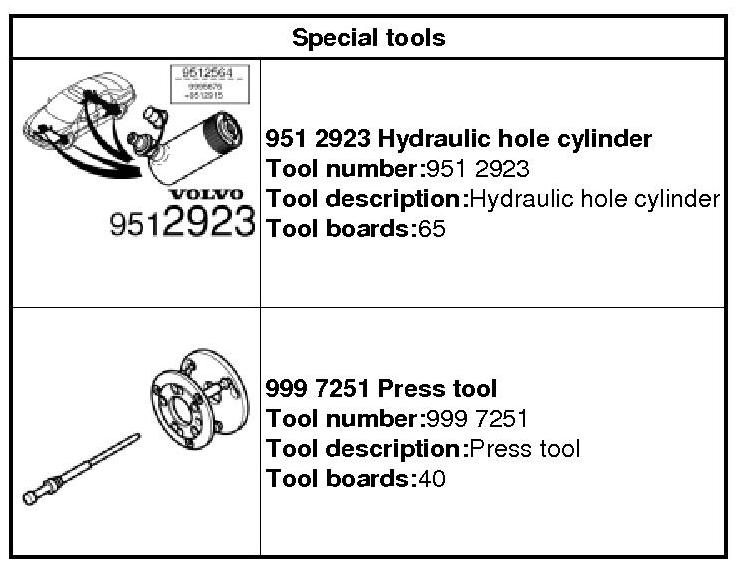

951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder 999 7251 Press tool 999 7251 Press Tool

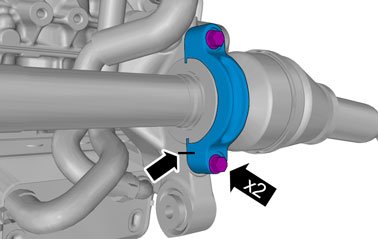

Note! Note the position of the component before removal.

Torque: M8, 24 Nm





Caution! Make sure that the inner constant velocity (CV) joint does not separate.

Installation





Caution! Make sure that the surface is clean and free of foreign material.





Caution! Make sure that the surface is clean and free of foreign material.

To install, reverse the removal procedure.
