Selector Lever Assembly

Selector Lever Assembly

Operation number: 43214-2

Removal

Note! Removal steps in this procedure may contain installation details.

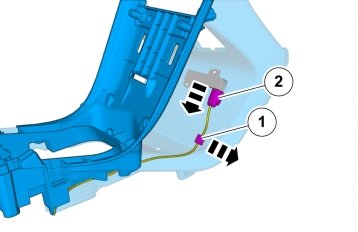

Remove center console Refer to: Center console Center Console

Remove the gear selector knob Refer to: Knob, gear shift selector, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Knob, Gear Shift Selector

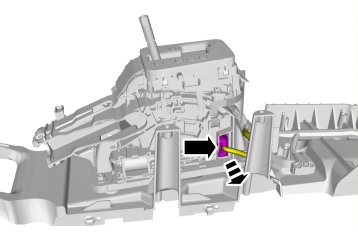

Torque: M8, 24 Nm

Caution! Take extra care when handling the component.

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Adjust the gear selector cable Refer to: Gear selector cable, adjusting, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Adjustments
