Distribution Box In Passanger Compartment

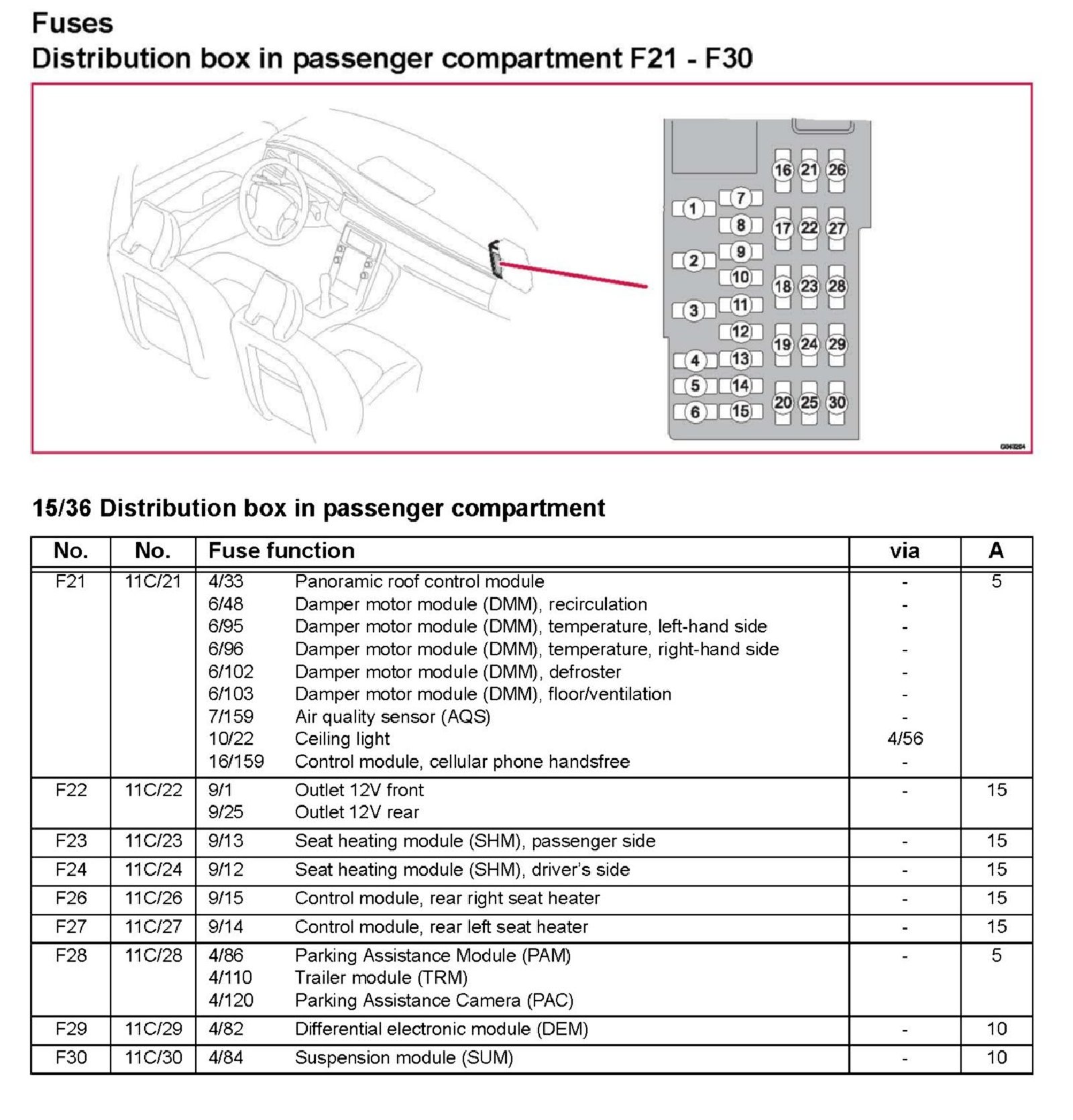

Distribution Box In Passanger Compartment F21-F30:



Distribution Box In Passanger Compartment F1-F9:
