Power Socket 12V






Power socket 12V

Operation number: 36403-2

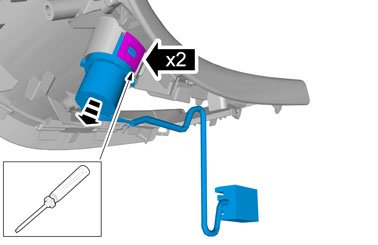

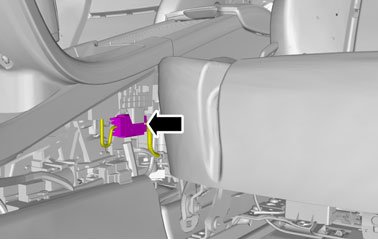

Removal

Remove center console Refer to: Center console Center Console









Installation

To install, reverse the removal procedure.
