Brake Rotor/Disc














Front disc

Runout Max. 0.02 mm

Rear disc

Runout Max. 0.025 mm

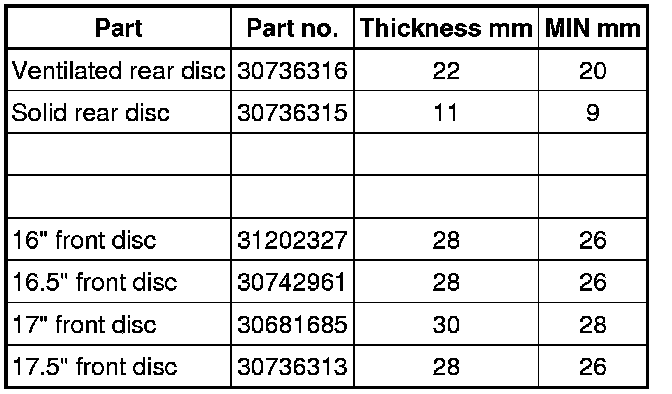

Disc thickness
