Air Bag Control Module: Service and Repair

Air bag supplemental restraint system

Operation number: 88424-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Disconnect the battery ground cable. Battery Disconnecting and Connecting.

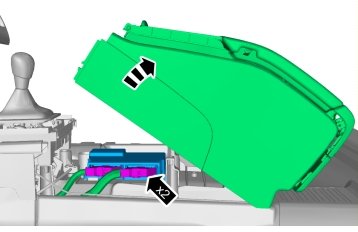

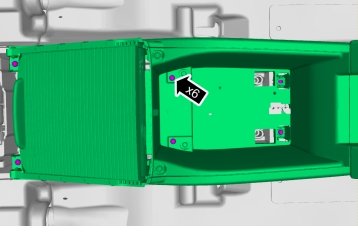

Remove the center console. Refer to: Center console Center Console.

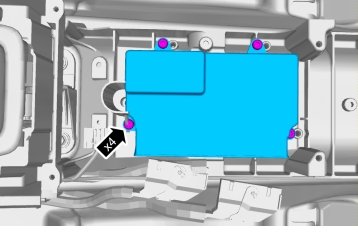

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure


Caution! Make sure that there are no loose particles or similar between the control module and the body panel. This can cause poor functionality or over-sensitivity in the supplemental restraint system.

Order software. See: 30773482.

Carry out a post check. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection.
