Power Steering Delivery Pipe

Power steering delivery pipe

Operation number: 64532-2






Removal

Remove battery Refer to: Battery Removal and Replacement Battery Removal and Replacement




Torque: M8, 24 Nm

Remove the air filter housing Refer to: Air cleaner housing, Service and Repair.




1. Torque: M6, 10 Nm

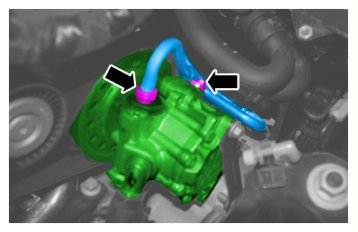

2. Torque: Pressure line to power steering pump, 30 Nm

Remove the wheel Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

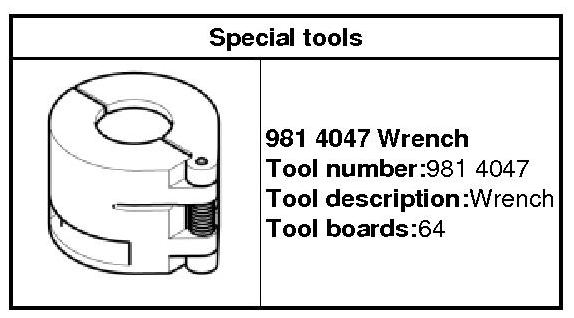

981 4047 Wrench 981 4047 Wrench




Torque: M6, 10 Nm

Installation





Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B6324S5, B6324S4 Service and Repair
