Delivery and Return Line, Power Steering

Delivery and return line, Power steering

Operation number: 64515-2






Removal

Note! Removal steps in this procedure may contain installation details.

Drain reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Service and Repair

Remove right front wheel Refer to: Wheels Service and Repair

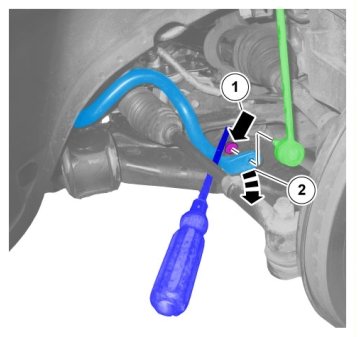

Torque: Front stabilizer bar link to stabilizer bar, 70 Nm

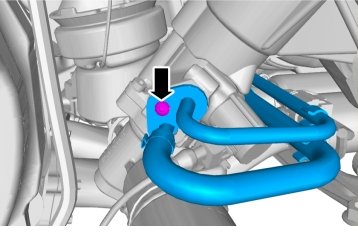

Torque: M8, 24 Nm





Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

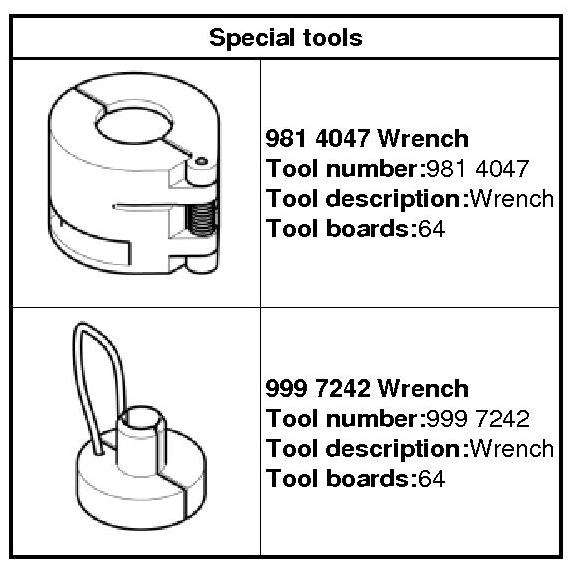

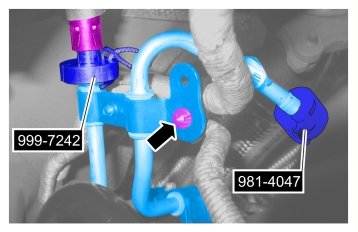

981 4047 Wrench 981 4047 Wrench 999 7242 Wrench 999 7242 Wrench





Caution! Take extra care not to damage the clips.

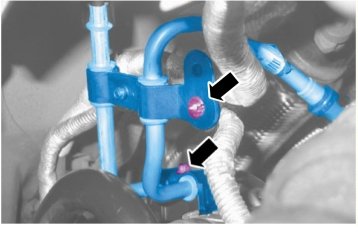

Torque: M6, 10 Nm





Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

Torque: Pressure line to steering gear, 20 Nm

Installation

To install, reverse the removal procedure.

Top up power steering system, bleeding Refer to: Power steering system, bleeding, B6304T4, B6324S5, B6324S4 Service and Repair
