A/C - Incorrect Compressor Part Number IN VIDA
Retailer Technical Journal 22136AC Compressor,
Part number missing in VIDA.
Date 11-24-2009
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

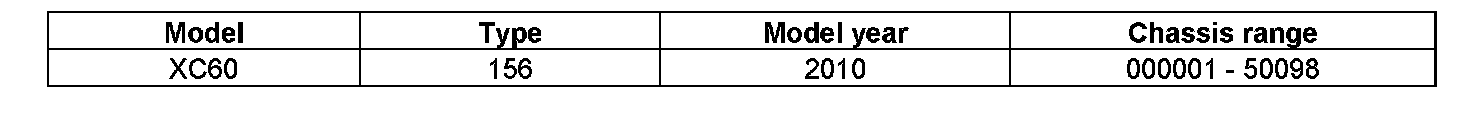

AFFECTED VEHICLES:
DESCRIPTION:
In VIDA, the only AC compressor listed is PN 36002623. Cars within the chassis range listed above should have PN 36002746. VIDA PN 36002623 is valid from chassis 050099-.
Note:
36002623 is designed only for cars from chassis 050099-, the differences are subtle but the performance may be slightly compromised.
SERVICE:
When replacing the AC compressor, follow the instructions in VIDA and use the correct part number.
VIDA: Removal, replacement and installation
- 8 Body and interior
- 87 Climate units
- 874 Cooling unit
- Select the appropriate engine variant
- AC compressor
