Blower Motor: Service and Repair

Blower motor passenger compartment

Operation number: 87306-2






Removal

Note! Removal steps in this procedure may contain installation details.





Remove sill molding front Refer to: The front sill trim panel Front Sill Trim Panel












Detach and fold back the floor covering.

Remove glove compartment Refer to: Glove compartment Glove Compartment





Remove control module relay box passenger compartment Refer to: Control module relay box passenger compartment Control Module Relay Box Passenger Compartment Control module relay box passenger compartment Control Module Relay Box Passenger Compartment








Torque: M8, 24 Nm

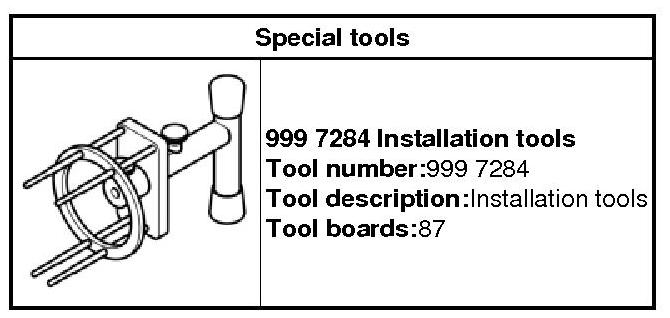

999 7284 Wrench 999 7284 Wrench





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.

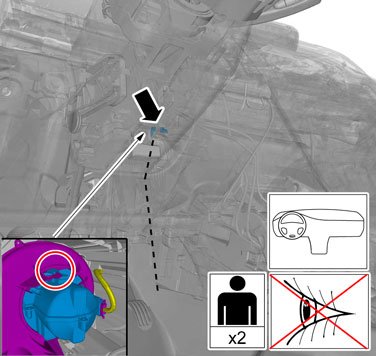

Note! This step requires the aid of another technician.





Caution! Take extra care when handling the component.

Remove the plenum cover Refer to: Plenum chamber Service and Repair Plenum chamber Service and Repair

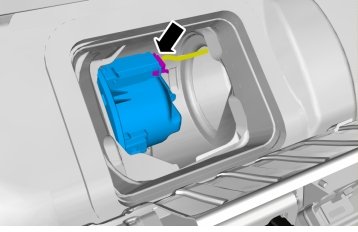

Note! Make sure that the electrical connector is secured in the clip when disconnected.

Installation





Caution! Make sure that the blower motor and fan assembly is placed on the bench with the fan pointing upwards.





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.

To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
