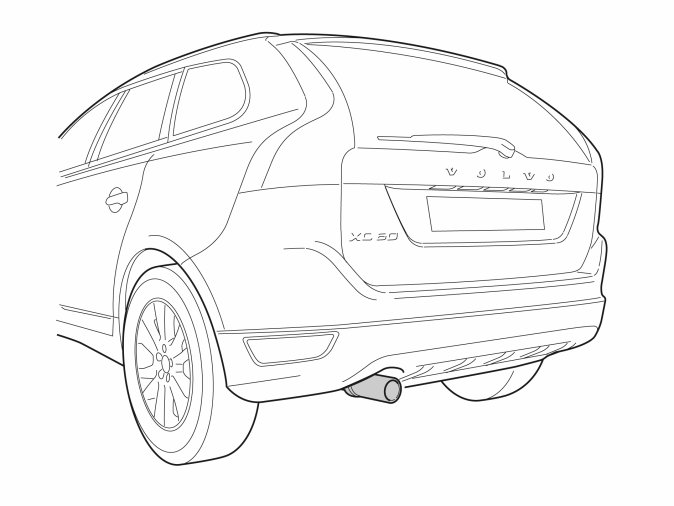

End pipe, single



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






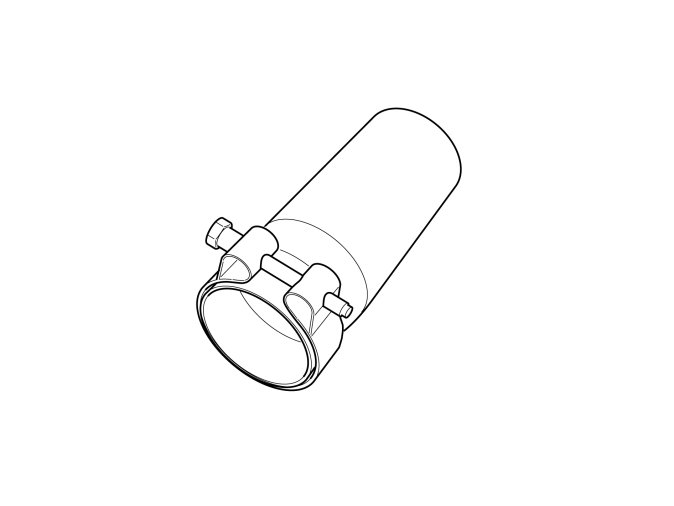

End pipe, single

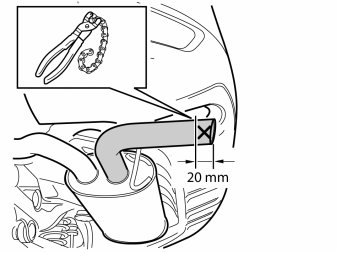

- Measure the distance as illustrated.
- Cut off the exhaust pipe using the pipe cutter.


Illustration A

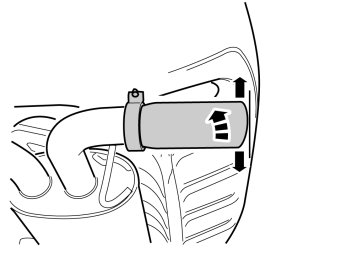

- Slide the end pipe onto the exhaust pipe until the cone inside the end pipe engages the exhaust pipe.

Illustration B





Illustration C




- Turn to the correct position.

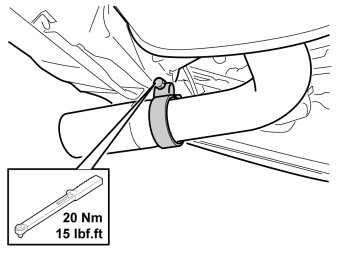

- Tighten the clamp. Recommended tightening torque 20 Nm (15 lbf.ft.)
- Post tighten the clamp to the correct torque after 5 minutes.
