Climate Control System PTC-Elements

Climate Control System PTC-elements

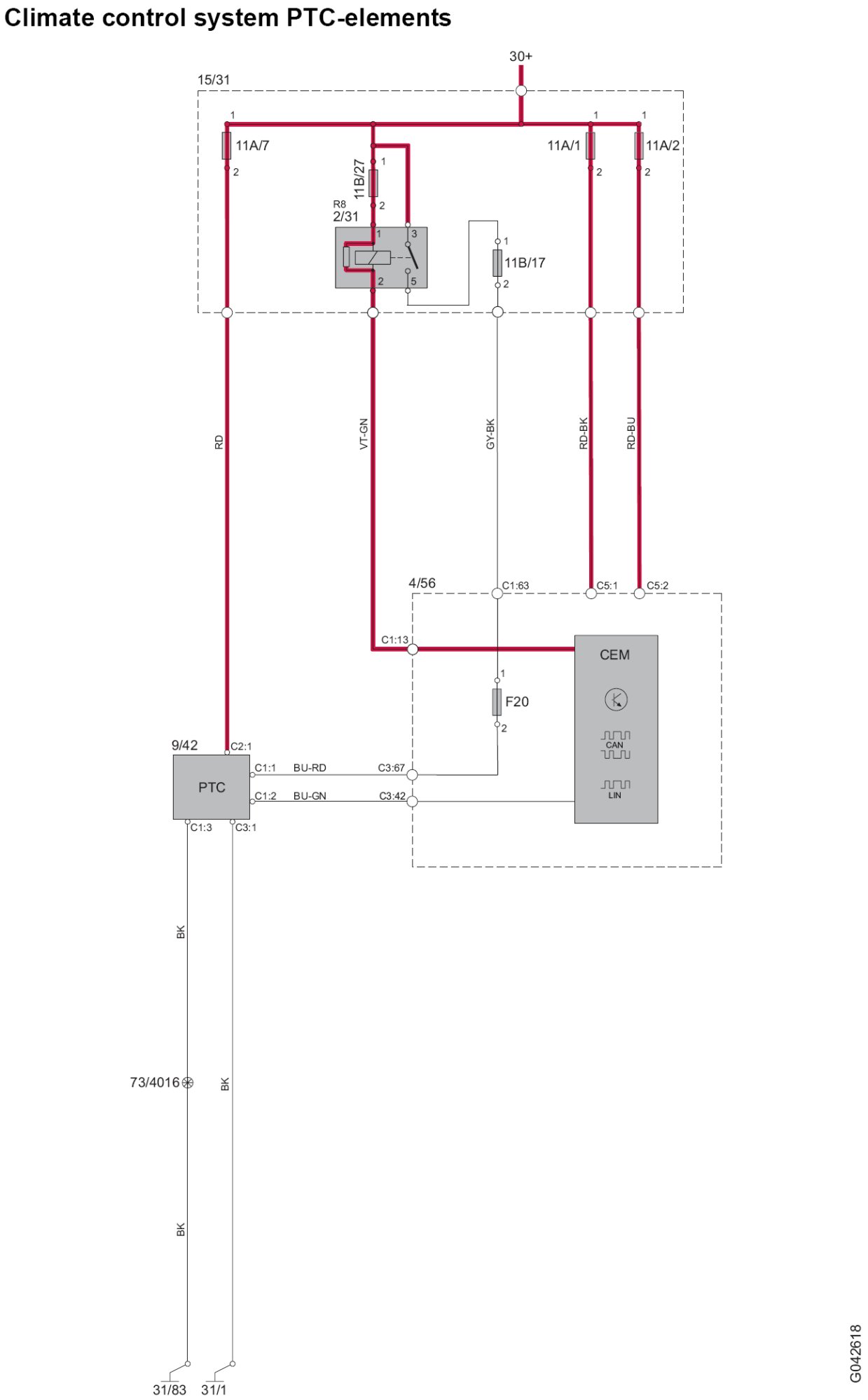

Climate Control System PTC-Elements:

Diagram Legend: Changes Introduced Up to and Including June 2009

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including June 2009
