XC60 AWD L6-3.0L Turbo VIN 99 B6304T2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

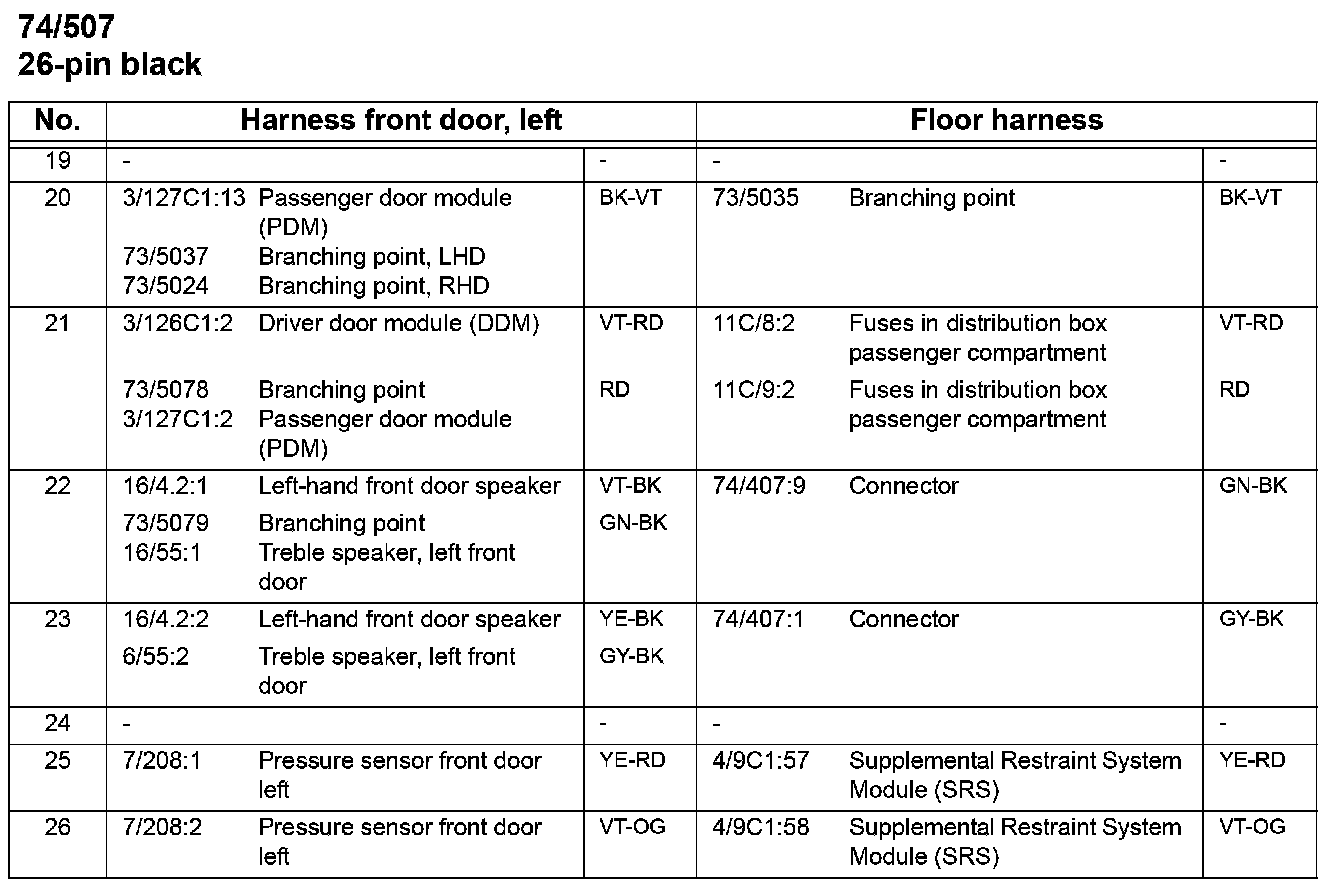

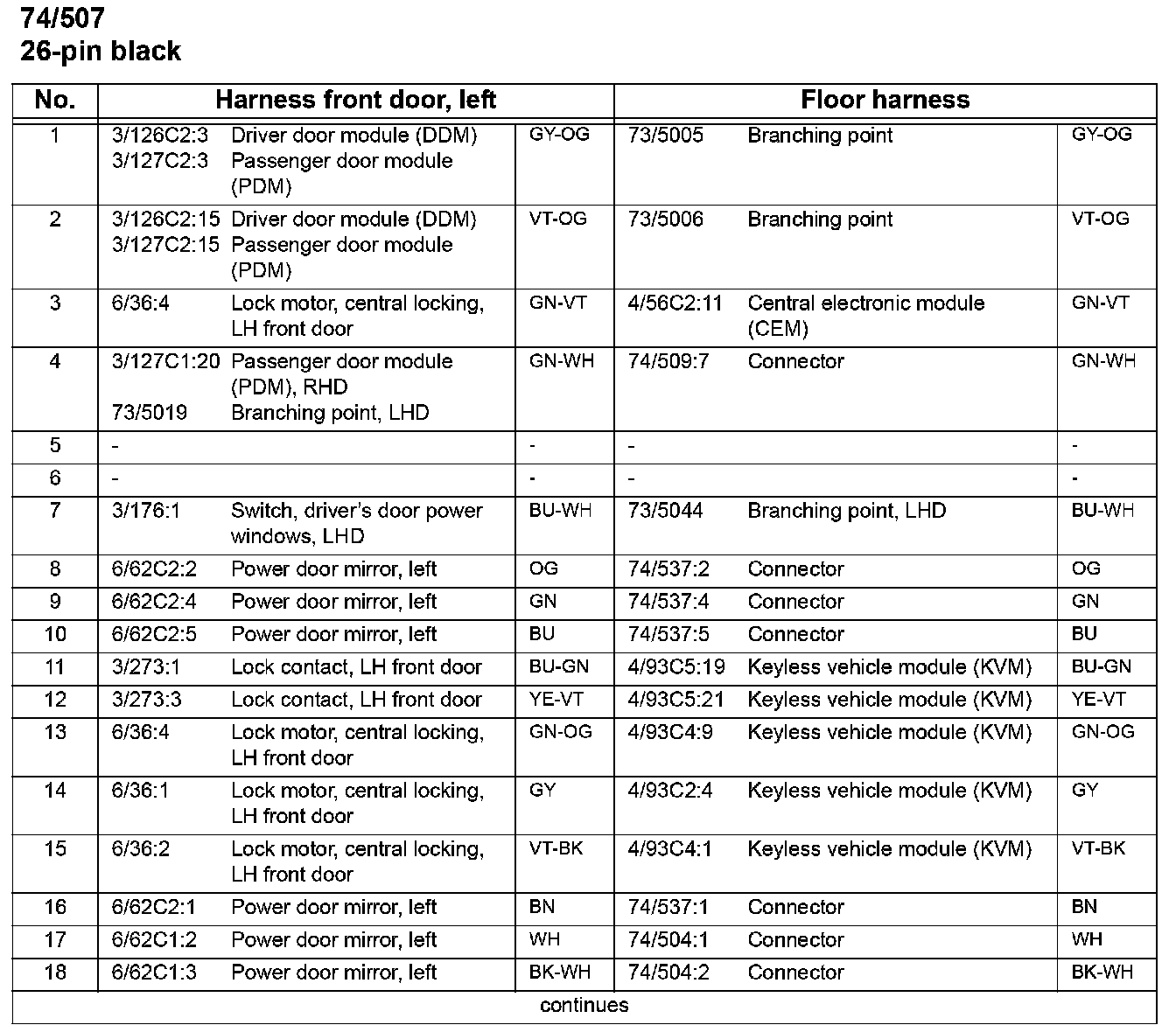

74/507 (Changes Introduced Up to and Including June 2009)
74/507 (Changes Introduced Up to and Including June 2009)
74/507
