Mud Flap: Service and Repair

Mudflaps



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Mudflaps

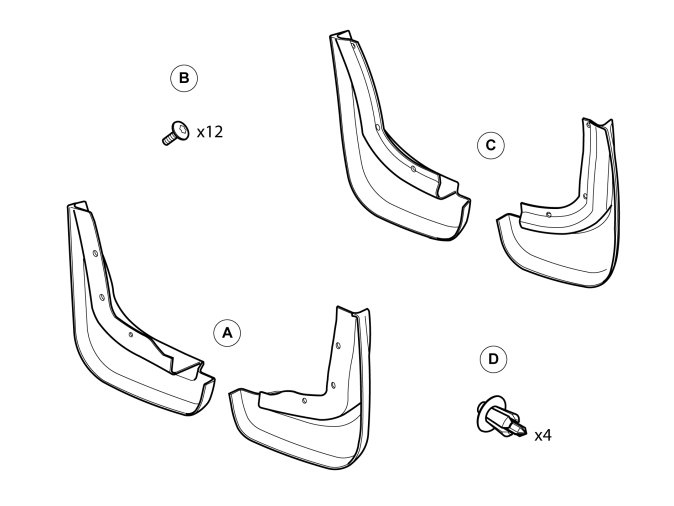

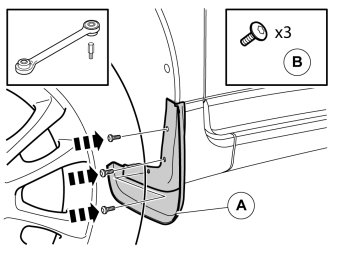

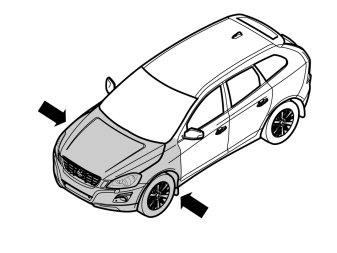

Installation of front mudflaps

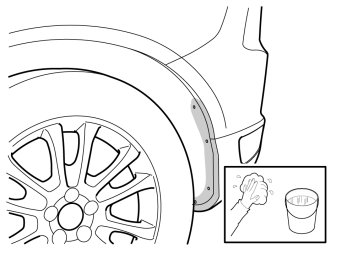

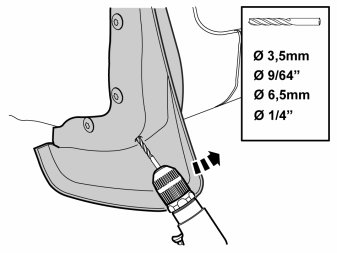

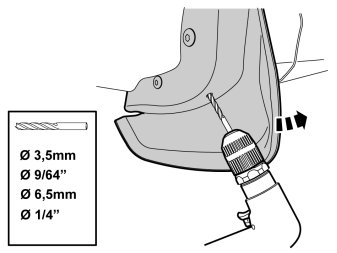

- Bend the mudflap backwards and drill a 3.5 mm (9/64") hole in the marking underneath.
- Drill out the hole using a 6.5 mm (1/4") drill bit.

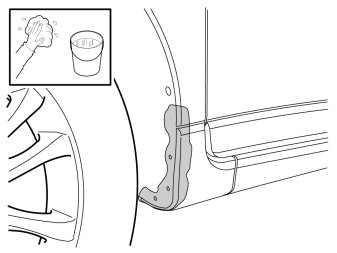

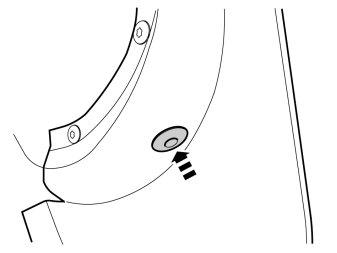

- Clean the hole edges.

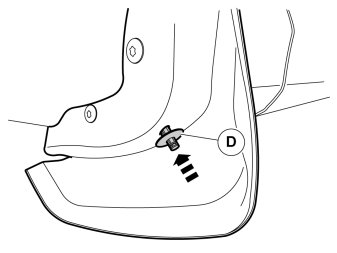

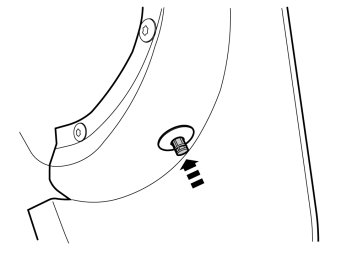

- Take a clip from the kit and press into the hole.

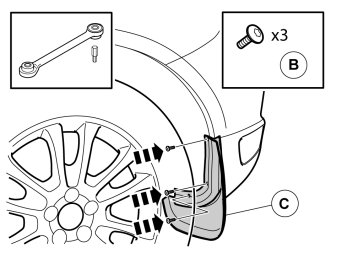

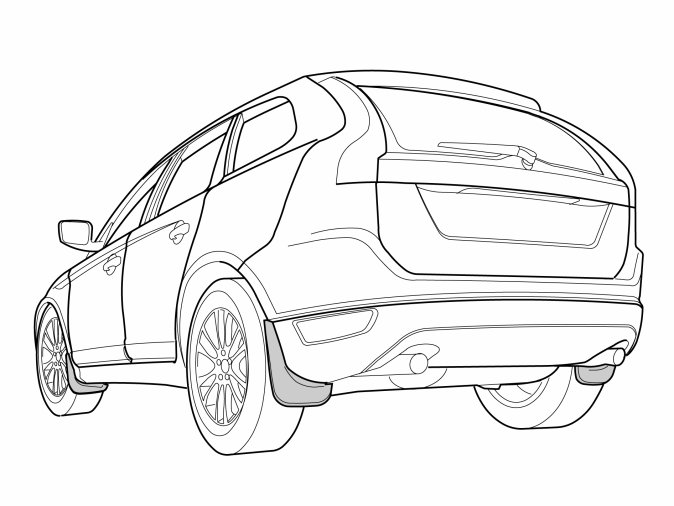

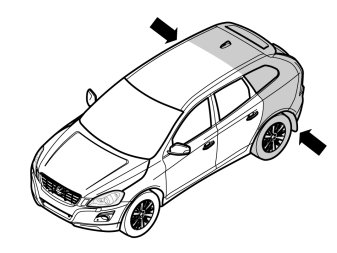

Installation of rear mudflaps





















- Bend the mudflap backwards and drill a 3.5 mm (9/64") hole in the marking underneath.
- Drill out the hole using a 6.5 mm (1/4") drill bit.
- Clean the hole edges.

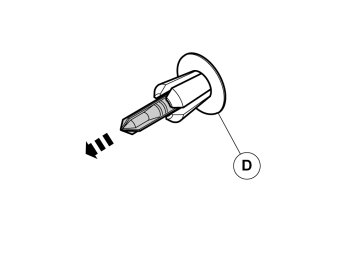

- Take a clip from the kit and pull out the central pin.





- Press the clip into the hole.





- Press the central pin into the clip.
