Interior - Vinyl Upholstery Cracking
Title Seat upholstery, vinyl parts may crackRef No US26206.1.0 en-US
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8525
Func Desc upholstery (front seat)
Status Released
Status Date 2012-05-29
Issue Date 2012-05-11
Reference VIDA

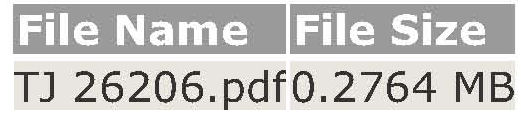

Attachment

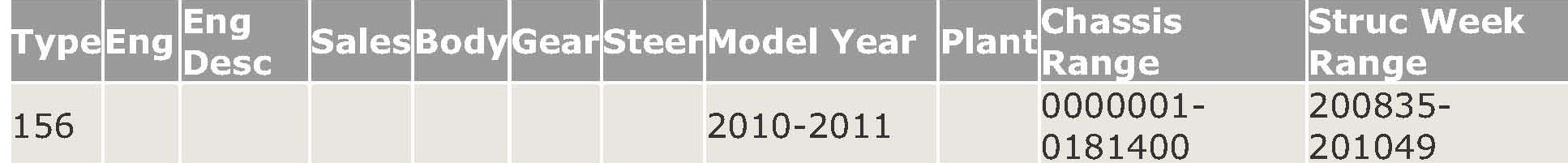

Vehicle Type

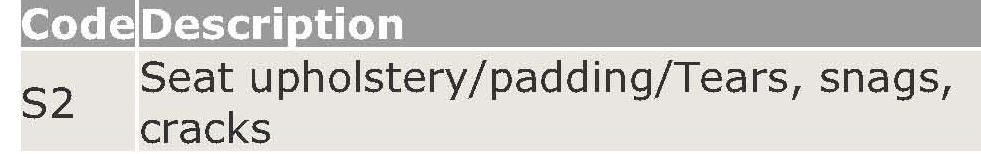

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note! If using a printed copy of this Technical Journal, first check for the latest online version.
DESCRIPTION:
The vinyl parts of the seat upholstery (interior code G600/G612) may crack.

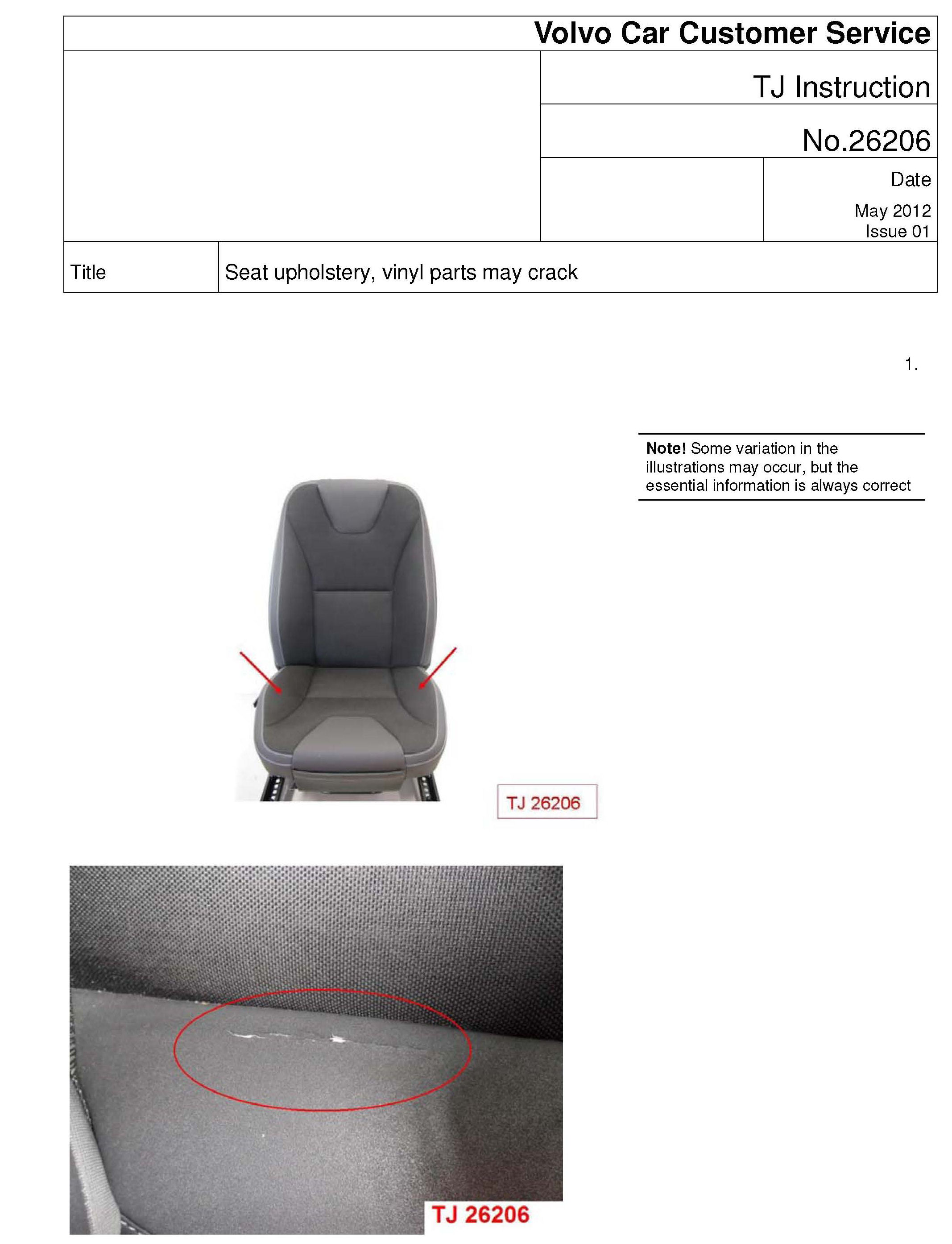

See attachment for example.
PRODUCT MODIFICATION:

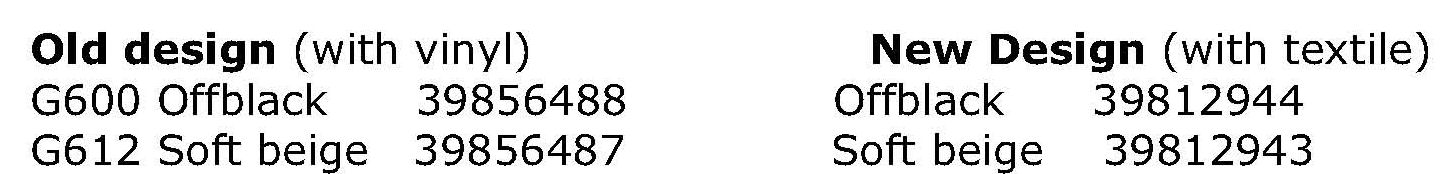

New design for seat upholstery (interior code G600/G612) has been implemented from
week 49, 2010 in production and as spare parts.
Textile is used instead of vinyl on some areas, see attachment for example.
SERVICE:
In case of customer complaints, replace seat upholstery.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *85220-2* - **Upholstery front seat cushion x1 remove/replace** -
"See VSTG"
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
To view TJ attachment continue:
