Mirrors, Foldable

Mirrors, foldable























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Mirrors, foldable






Caution! Wait at least three minutes before disassembling the connector or removing other electrical equipment.

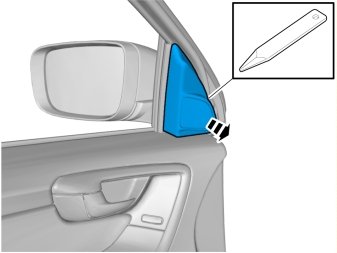

- Remove the panel. Disconnect any connectors.

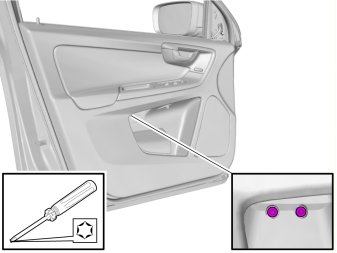

- Remove the two screws.

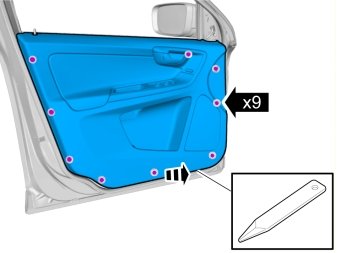

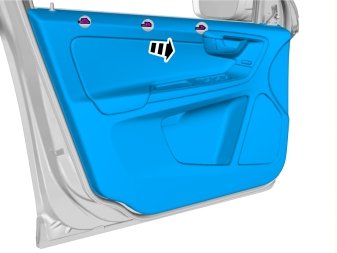

- Detach the door panel.

Note! The clips consist of two parts.














- Detach the door opener's wire.





- Disconnect the connectors and also any connectors for loudspeakers.
- Place the door panel to one side.

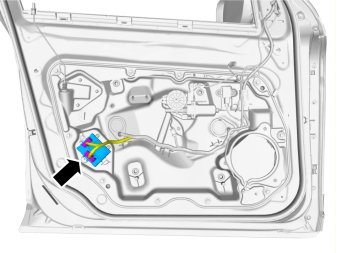

Replacement of the control module only applies to driver's door.

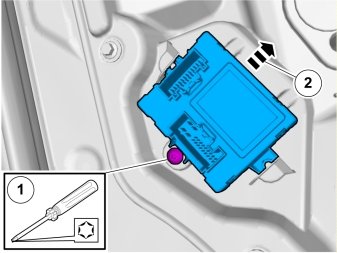

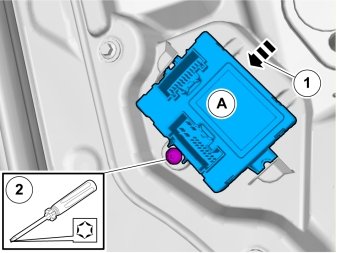

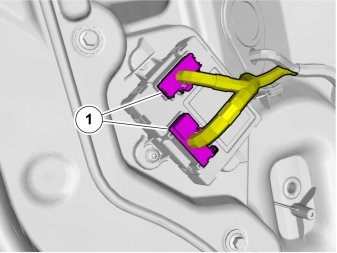

- Unplug the connectors (1).





- Remove the control module. This will not be reused.





- Install in reverse order.





Applies to all models

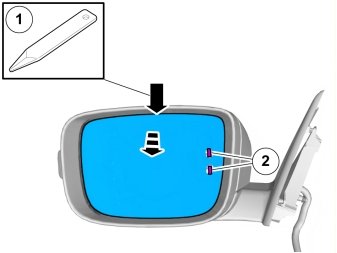

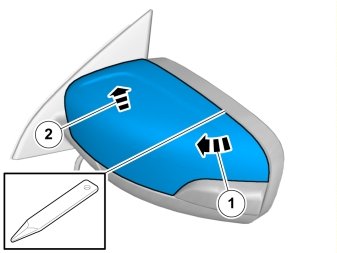

- Remove the glass from the mirror and disconnect the connectors.

Caution! The glass may break.





- Remove the three screws, disconnect the connector and remove the motor unit.

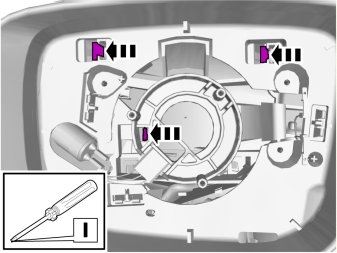

- Release the three hooks and at the same time remove the cover.

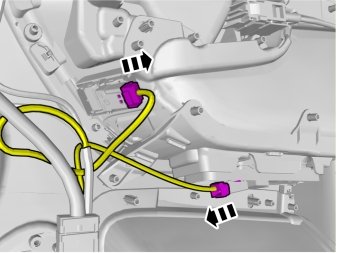

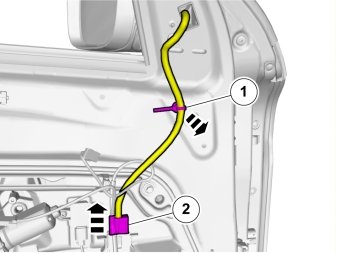

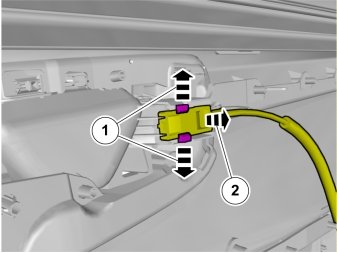

1. Detach the cable tie clips from the door.
2. Unplug the connector.

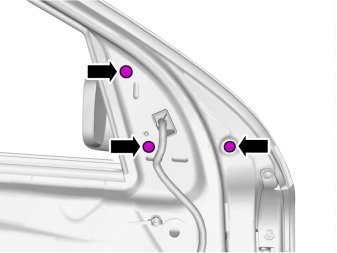

- Remove the three screws.

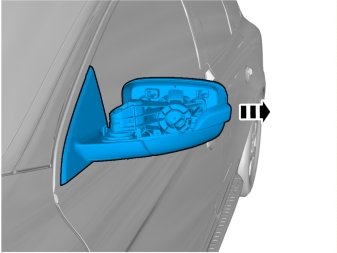

- Remove the mirror. This will not be reused.

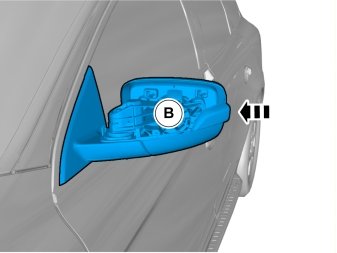

- Install the mirror in reverse order.
- Reinstall the detached components in reverse order.
- Repeat the operation on the passenger door.





- Download software for the driver's door control module.
