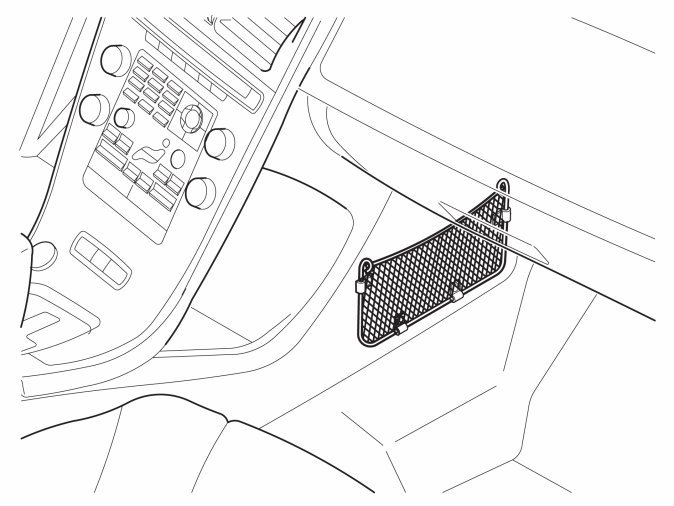

Mesh Pocket, Tunnel Console

Mesh pocket, tunnel console



































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






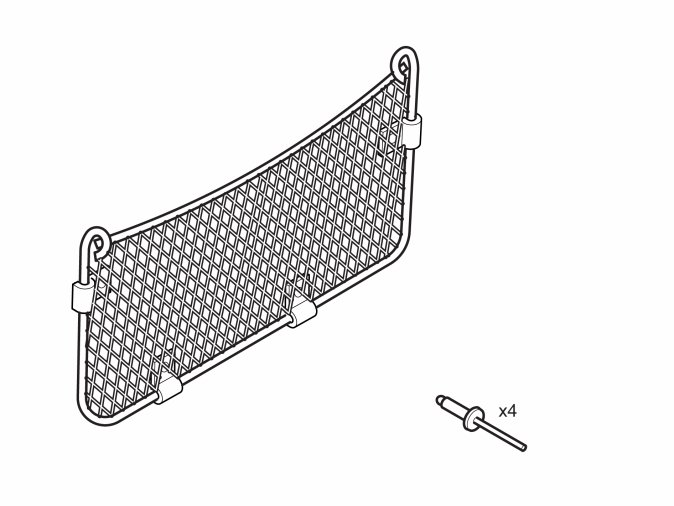

Mesh pocket, tunnel console

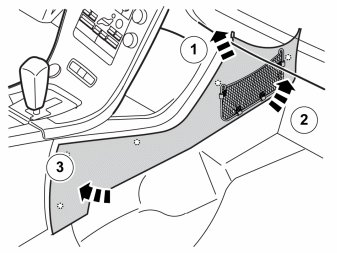

- Remove the tunnel console's right-hand side panel by carefully pulling it away. Start at the front edge. The side panel is secured with five clips on the inside.





- Place the mesh pocket on the panel with the front edge of the clips 4 mm (5/32") from the panel's front and rear edge. Attach the mesh pocket using tape to secure it.

Note! Take care not to damage the pocket lugs.

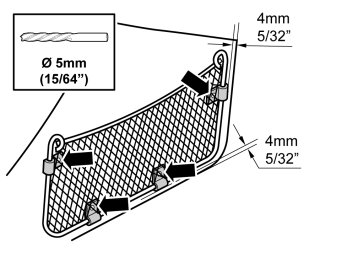

- Drill holes through the clip holes and through the panel. Use a -5 mm (13/64") drill bit.
- File down the edges of the holes.





- Position the mesh pocket with the clips against the holes in the side panel and with the pocket's buttons (1) pointing outwards.

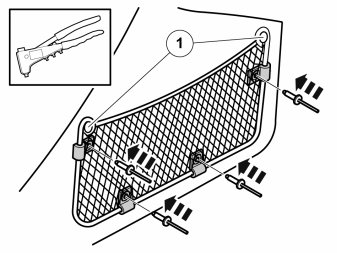

- Rivet the clips with the mesh pocket to the panel.

Note! Ensure that the pocket is not trapped by the rivet heads.
