Towbar, Hitch, License Plate Holder

Towbar, hitch, license plate holder























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Towbar, hitch, license plate holder

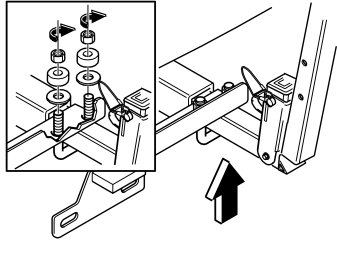

Image A applies when mounting on the holder's horizontal square tube

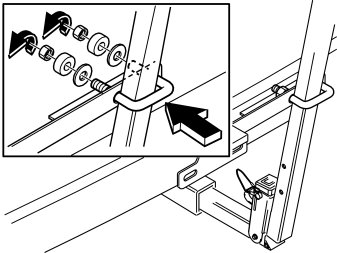

Image B applies when mounting on the holder's vertical square tube

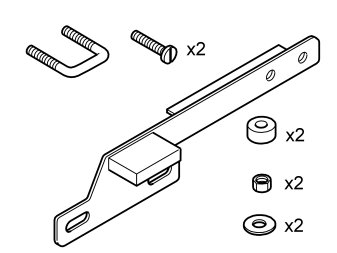

- Take the license plate holder and tighten it at the holder with the clamp, spacer sleeves and nuts from the kit as illustrated. Tighten the nuts to 7 Nm (5.2 lbf.ft).

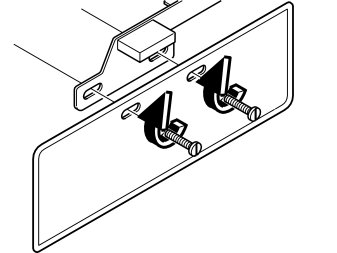

- Take the two screws from the kit and tighten the license plate into place.

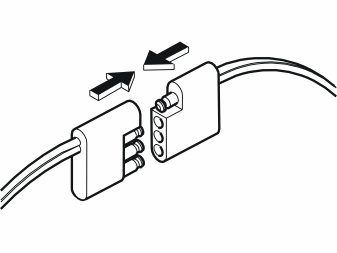

- Connect the connector for the license plate holder's lighting to the corresponding connector from the car.
