Garage Door Opener Transmitter: Service and Repair

Home Link







































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Home Link






Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

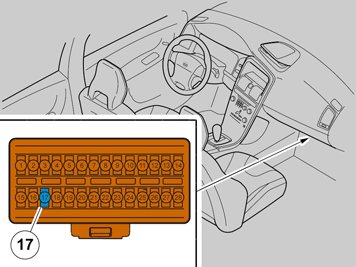

- Remove the fuse.

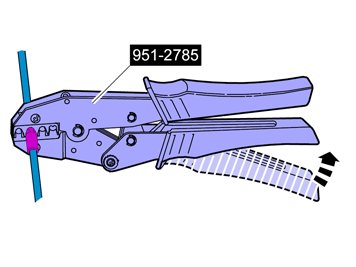

- Use special tool: 9512620










- Use special tool: 9512785

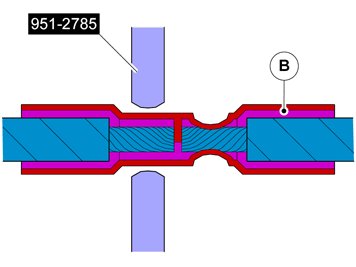

- Use special tool: 9512767
UK: Use special tool: 9512851
USA: Use special tool: 9512850

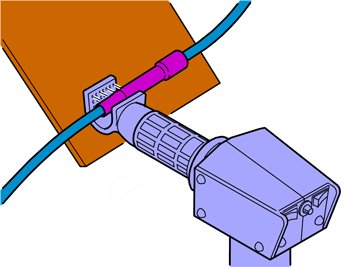

- Place a suitable protection behind to shield the surroundings from heat.

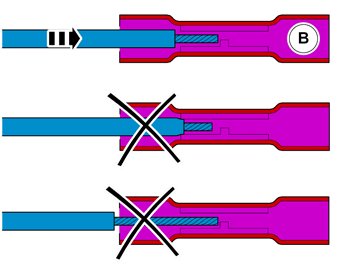

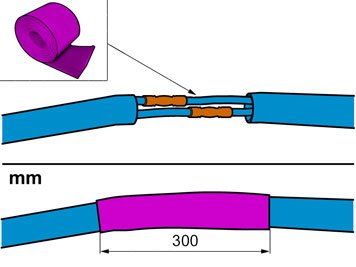

Note! Ensure that the butt connector is properly crimped around the cable. It should be possible to see that some adhesive has squeezed out.

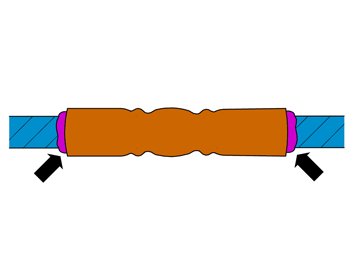

- Apply a maximum of two layers of tape.

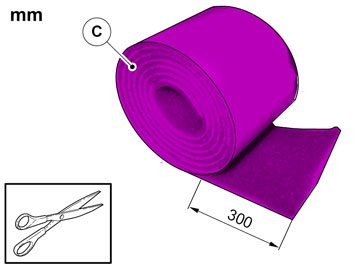

- Cut off the remaining tape.

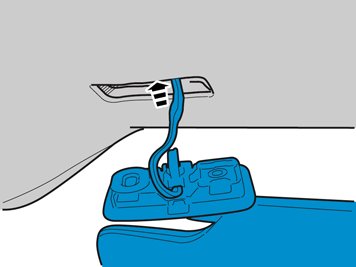

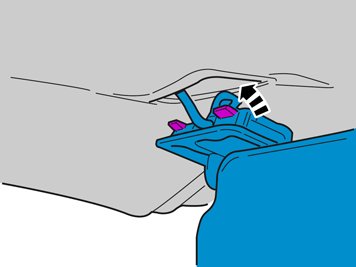

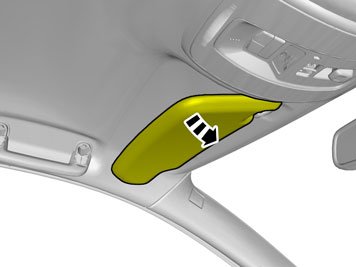

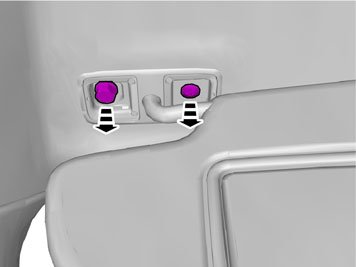

- Insert the two catches on the mounting above the headlining.
- Reinstall the detached components in reverse order.
