Part 1

Multimedia monitor with DVD, Dual screen























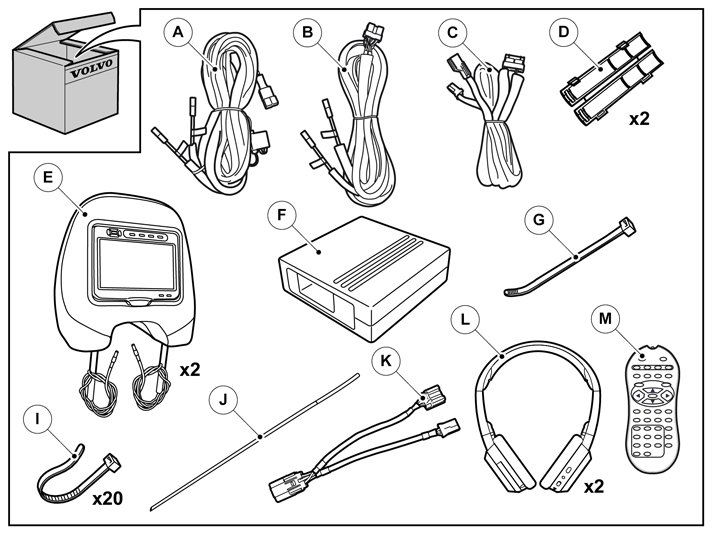

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Multimedia monitor with DVD, Dual screen


















- Tightening torque screws: 40 Nm (29.5 lbf.ft.).










- Tightening torque screws: 40 Nm (29.5 lbf.ft.).
Repeat the method steps for the other seat.

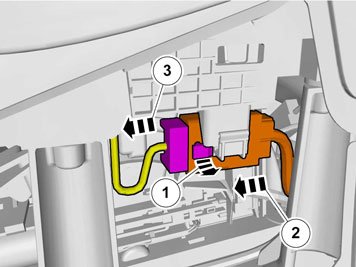

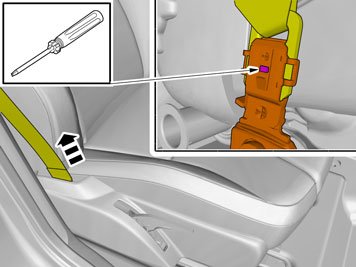

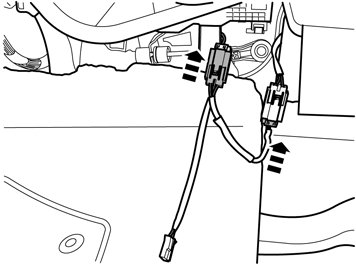

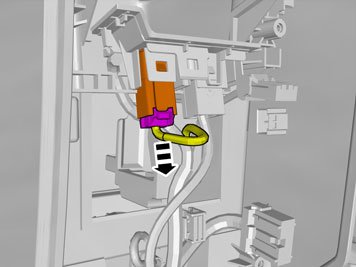

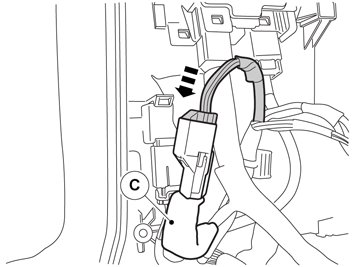

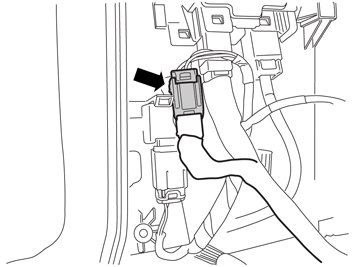

- Loosen the connector by screwing out the screw.

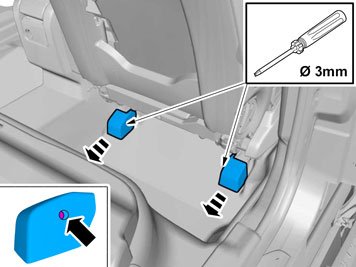

Applies to seat without belt tensioner.





Applies to seat with belt tensioner.





Applies to seat with belt tensioner.

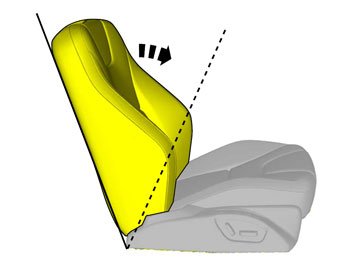

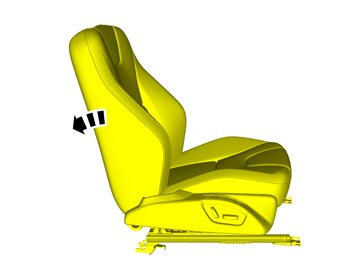

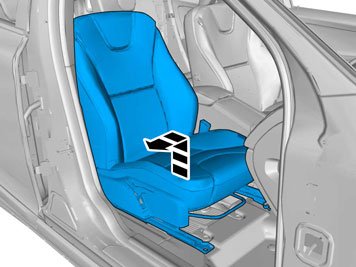

- Lift out seat.
- Repeat the method steps for the other seat.

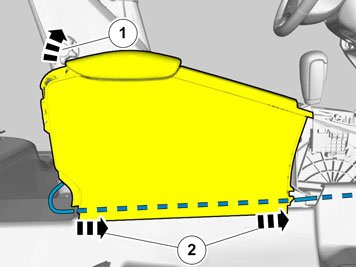

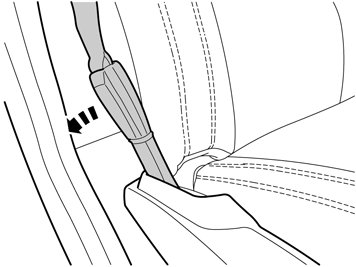

- Use tape to protect the tunnel console.

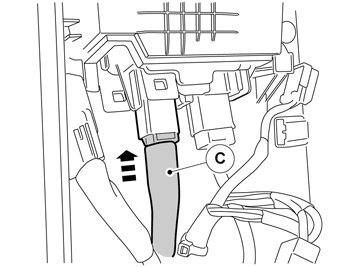

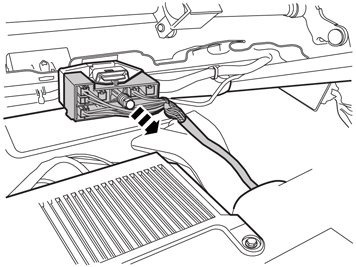

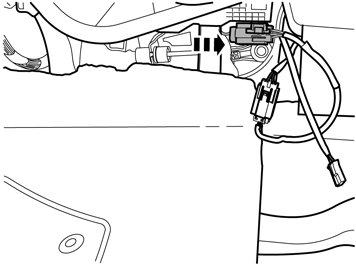

- Fasten the connector with butyl tape.














- Secure the cable marked RH with a cable tie.

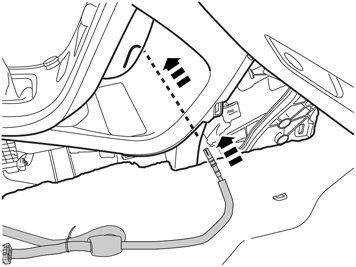

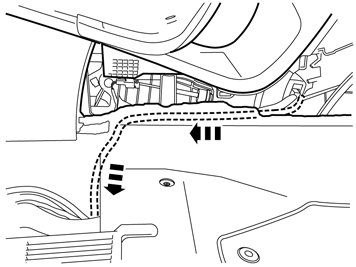

- Route the cable marked LH between air duct and climate unit over to the left side.

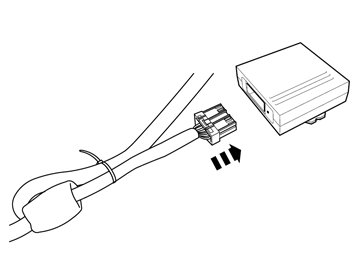

- Place the control module between air duct and climate unit.

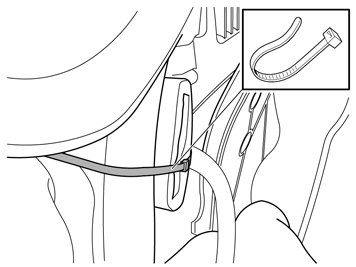

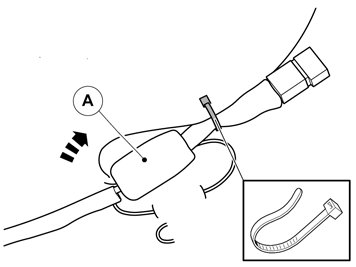

- Fasten the control module against the air duct with a cable tie.






















- Secure the cable marked LH with a cable tie.

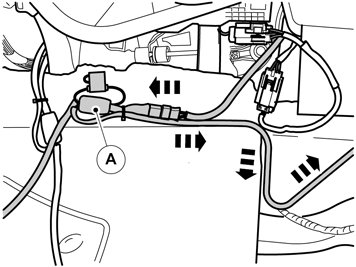

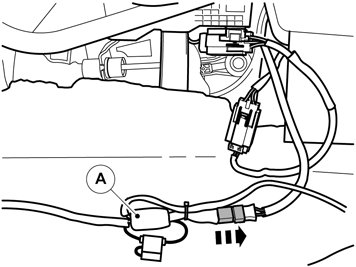

- Place fuse holder and connector under the mat.

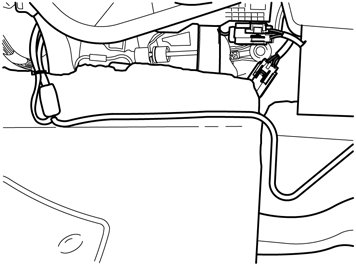

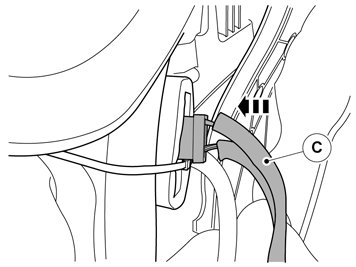

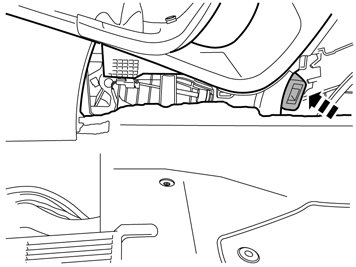

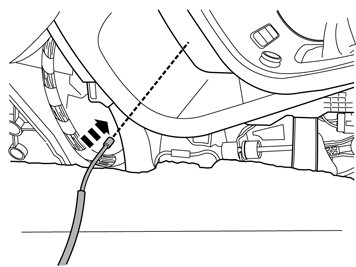

- Route the cable marked LH under the mat and on to the seat's cable harness.





- Route the cable under the mat and on to the seat's cable harness.

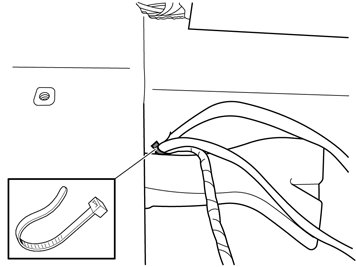

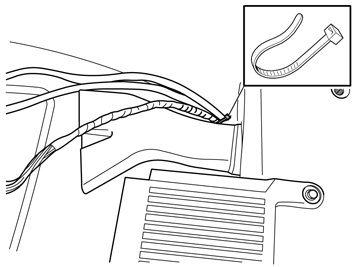

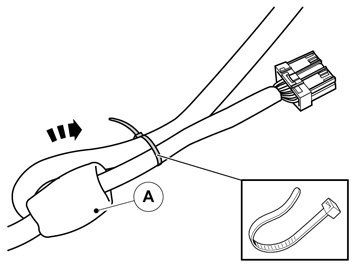

- Fasten the 2 cables to the harness in the seat's cable harness with a cable tie.





- Route the cable marked RH between air duct and climate unit over to the right side.





- Route the 2 cables under the mat and on to the seat's cable harness with a cable tie.





- Fasten the 2 cables to the harness in the seat's cable harness with a cable tie.

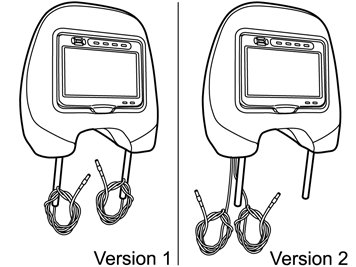

Note! There are two types of head restraint






Installing head restraint version 1

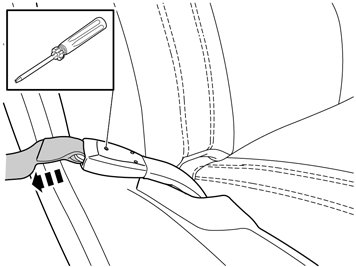

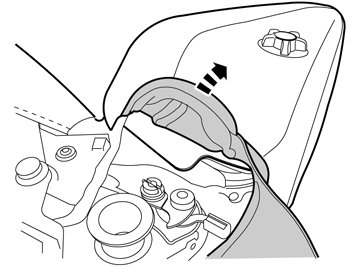

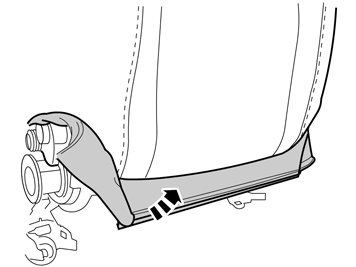

- Unhook the upholstery's strip at the bottom edge.

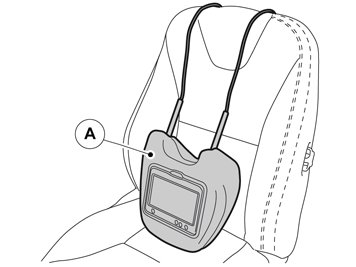

- Position the head restraint as illustrated.

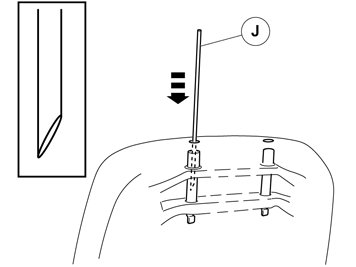

Caution! The tool is sharp. Be careful to not make holes in the vehicle's upholstery.

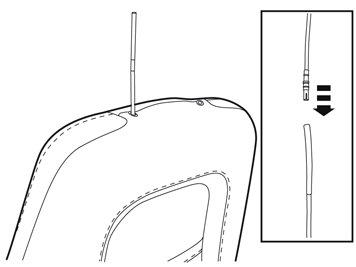

- Fasten the cable on the tool.

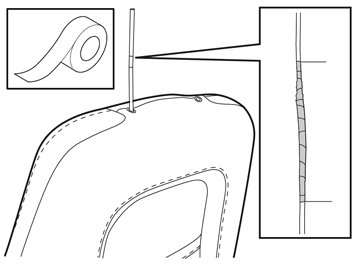

- Tape the tool to the cable.

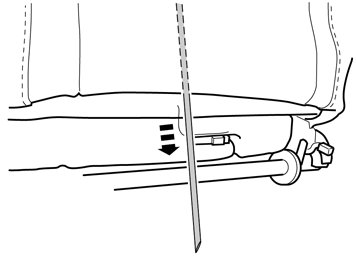

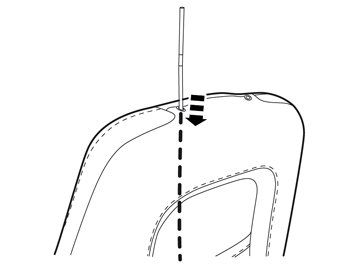

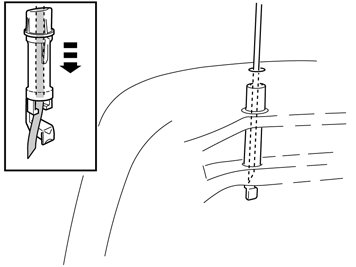

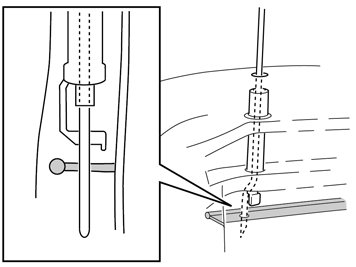

- Insert the tool with the cable.





- Remove and loosen the tool from the cable.
- Repeat the method steps for the other cable.

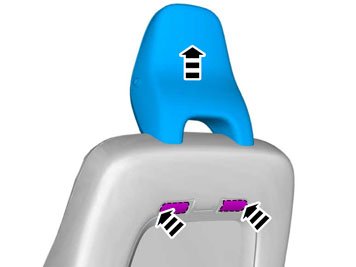

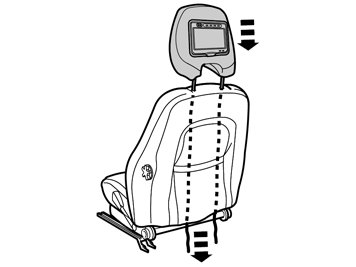

- Secure the head restraint.
