Part 2

Handsfree, Bluetooth































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






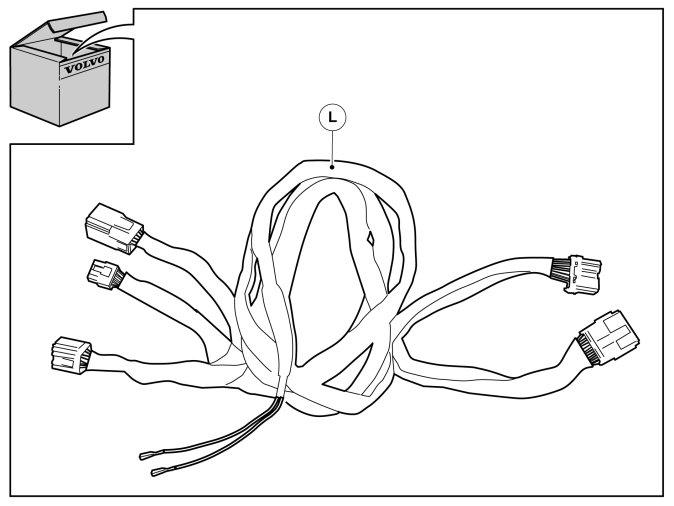

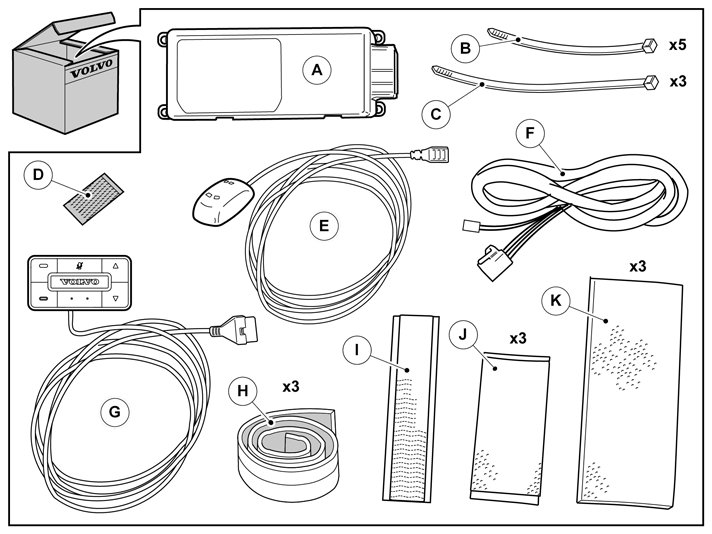

Handsfree, Bluetooth

Applies to all models

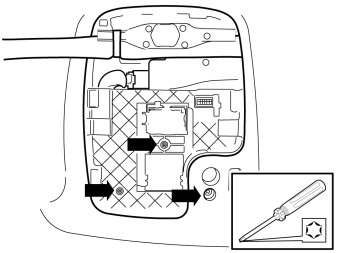

- Install the three trim screws.

Applies to LHD cars

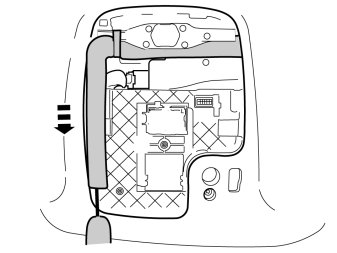

- Hold the microphone cable straight forward and refit the interior lighting.

Applies to RHD cars

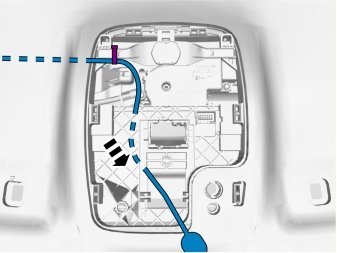

- Route the microphone cable above the headlining panel's frame and out through the front opening and reinstall the interior lighting.

Applies to all models

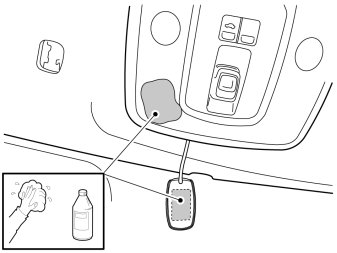

- Clean the microphone and ceiling panel as illustrated. Use a solution of 25% isopropanol and 75% water as well as a lint free cloth.
- Allow to dry.










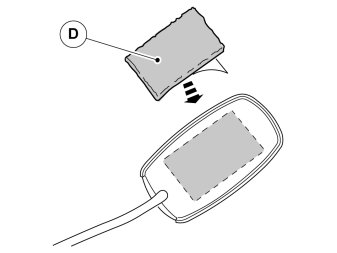

Illustration A

Caution! Direct the microphone towards the driver.




Illustration B

Caution! Position the corner of the microphone edge to edge with the lens of the ceiling lighting.

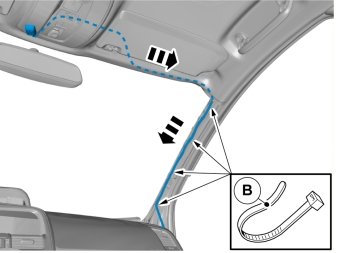

- Feed in any cable excess.






Warning! The function of the inflatable curtain can be affected if the cable is routed differently.

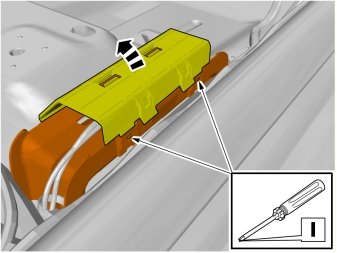

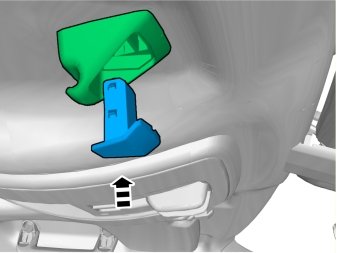

- Cut off the mounting's installation tabs from the sun shield cradle.





- Carry out on both sides.

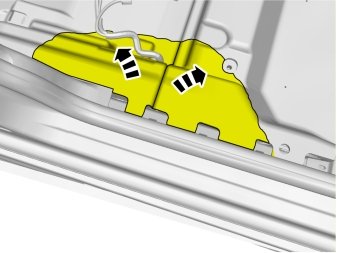

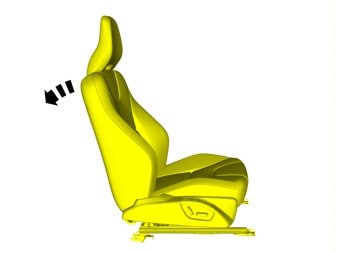

- Fold the carpet to one side.

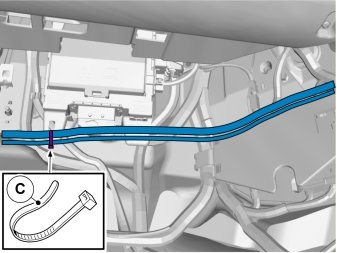

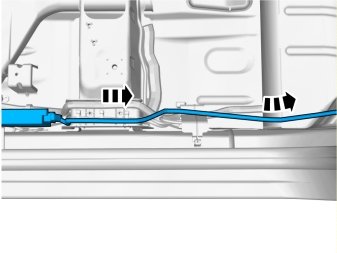

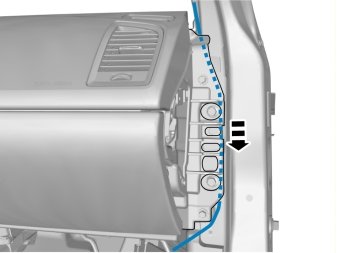

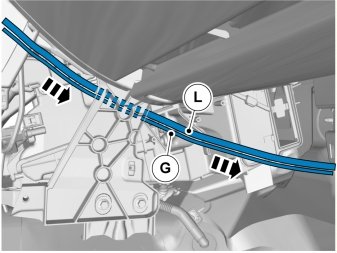

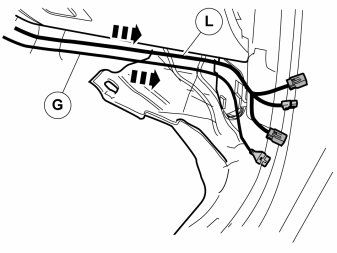

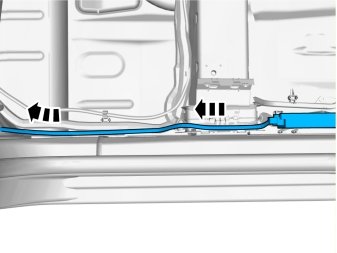

- Route the wiring inside the upper edge of the floor mat.






















- Cut off any foam tape excess.























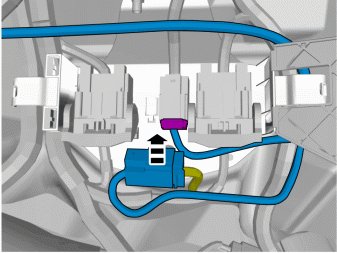

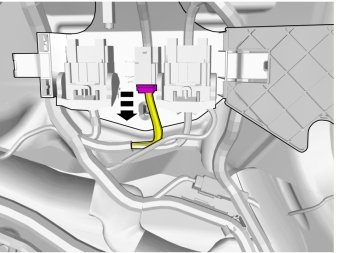

Applies to left-hand drive cars with amplifier.






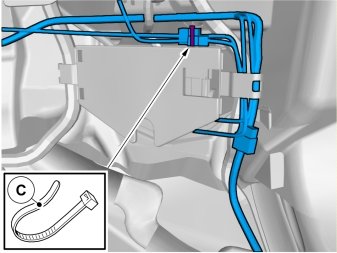

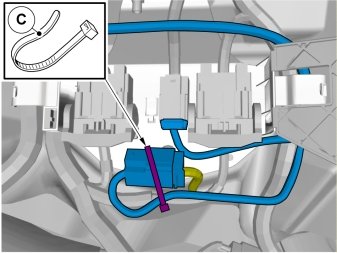

Applies to all models

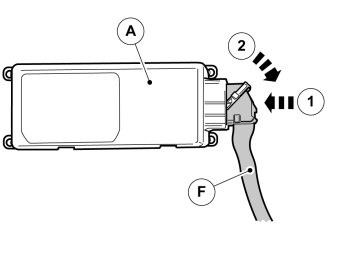

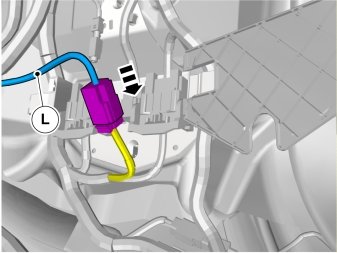

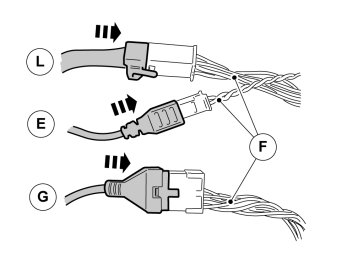

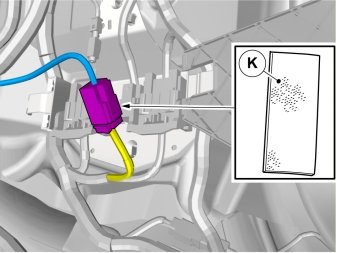

- 1. Connect the cable harness (F) to the control module (A).
- 2. Lock the catch.

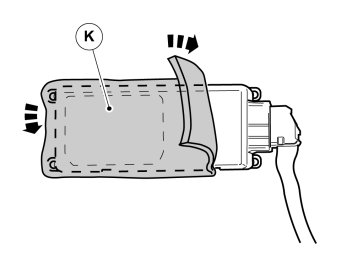

- Apply foam tape to the front of the control module.











Applies to left-hand drive cars

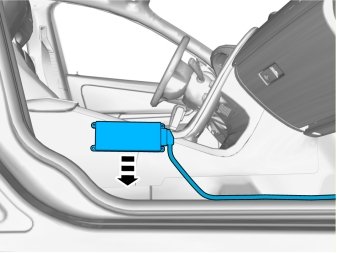

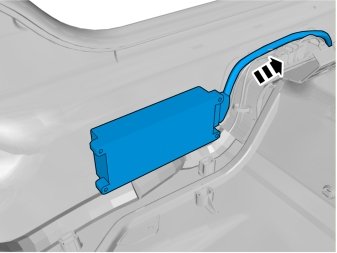

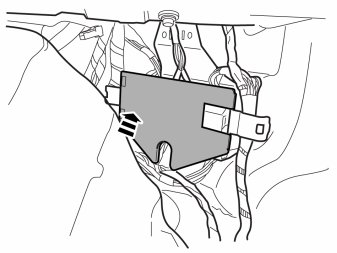

Note! The control module's connection must point forwards with the foam tape towards the sill.

Applies to left-hand drive cars






Applies to right-hand drive cars






Applies to right-hand drive cars

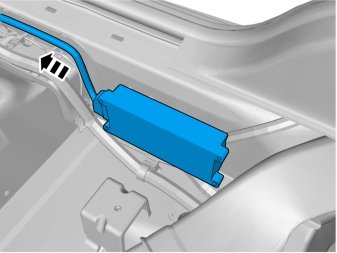

Note! The control module's connection must point forwards with the foam tape towards the sill.

Applies to right-hand drive cars






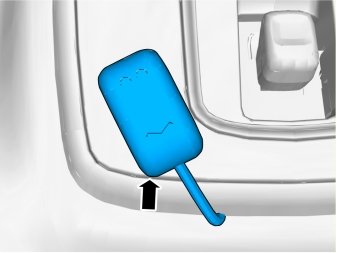

Applies to all models













- Reinstall the removed components in reverse order.
- Download software (application) for the accessory's function.






Check the function as follows:
- Turn the ignition key to position I.
- Turn on the radio.
- Check that the control panel for Bluetooth lights up.
- Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
- Press the button (2). The voice should now stop and the audio from the radio returns.
