Cellular Phone Microphone: Service and Repair

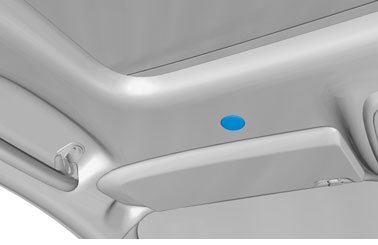

Microphone telephone






Removal

Note! Removal steps in this procedure may contain installation details.





Vehicles manufactured up to chassis number: 2050099

Remove lighting interior front





Note! Make sure that the direction arrow points towards the driver position.

Vehicles manufactured from chassis number: 2050099
















Torque: M6, 10 Nm

Remove panel A-pillar Refer to: A-pillar trim panel A-Pillar Trim Panel

Remove the B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel




Torque: M6, 10 Nm

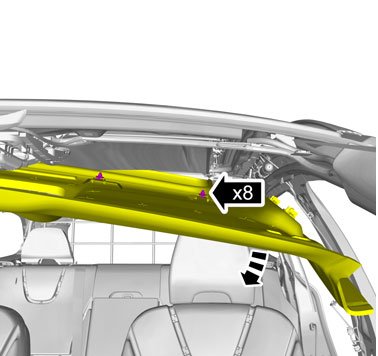

Caution! Take extra care not to crease the headliner.

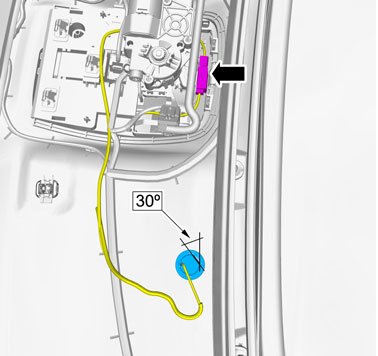

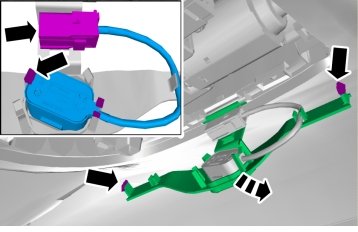

Note! Note the position of the component before removal.

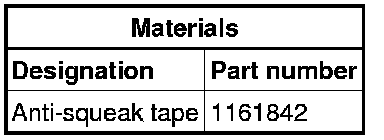

Use: Anti-squeak tape, 1161842









Installation

To install, reverse the removal procedure.
