Antenna Amplifier: Service and Repair

Antenna amplifier, radio

Operation number: 39580-2, 39581-2

Removal

Note! Removal steps in this procedure may contain installation details.

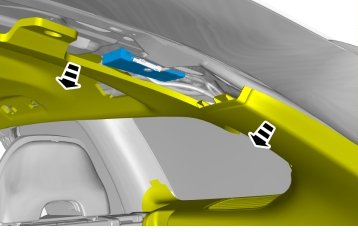

Remove panel, roof sill Refer to: Cant rail panel Cantrail Panel









Caution! Take extra care not to crease the headliner.

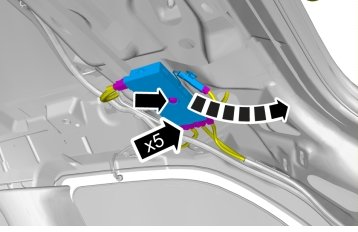

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
