Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information HCM-B103D86

Condition

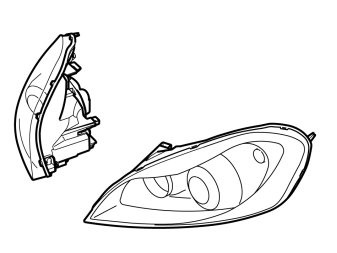

The Headlamp Control Module (HCM) communicates with the Right headlamp control unit (RHCU).
The diagnostic trouble code is stored if the control module detects:
- Incorrect data during communication with the Right headlamp control unit (RHCU).
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Ignition switch position II.
- Battery voltage higher than 10 V.

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.





Substitute value
- Side control freezes straight ahead.

Possible source
- Damaged Right headlamp control unit (RHCU).

Fault symptom[s]
- Headlights/Vertical adjustment not influenced by steering wheel
- Headlights/Headlight aim is off
- Text window and warning symbol/Text message
