Power Windows Rear Doors

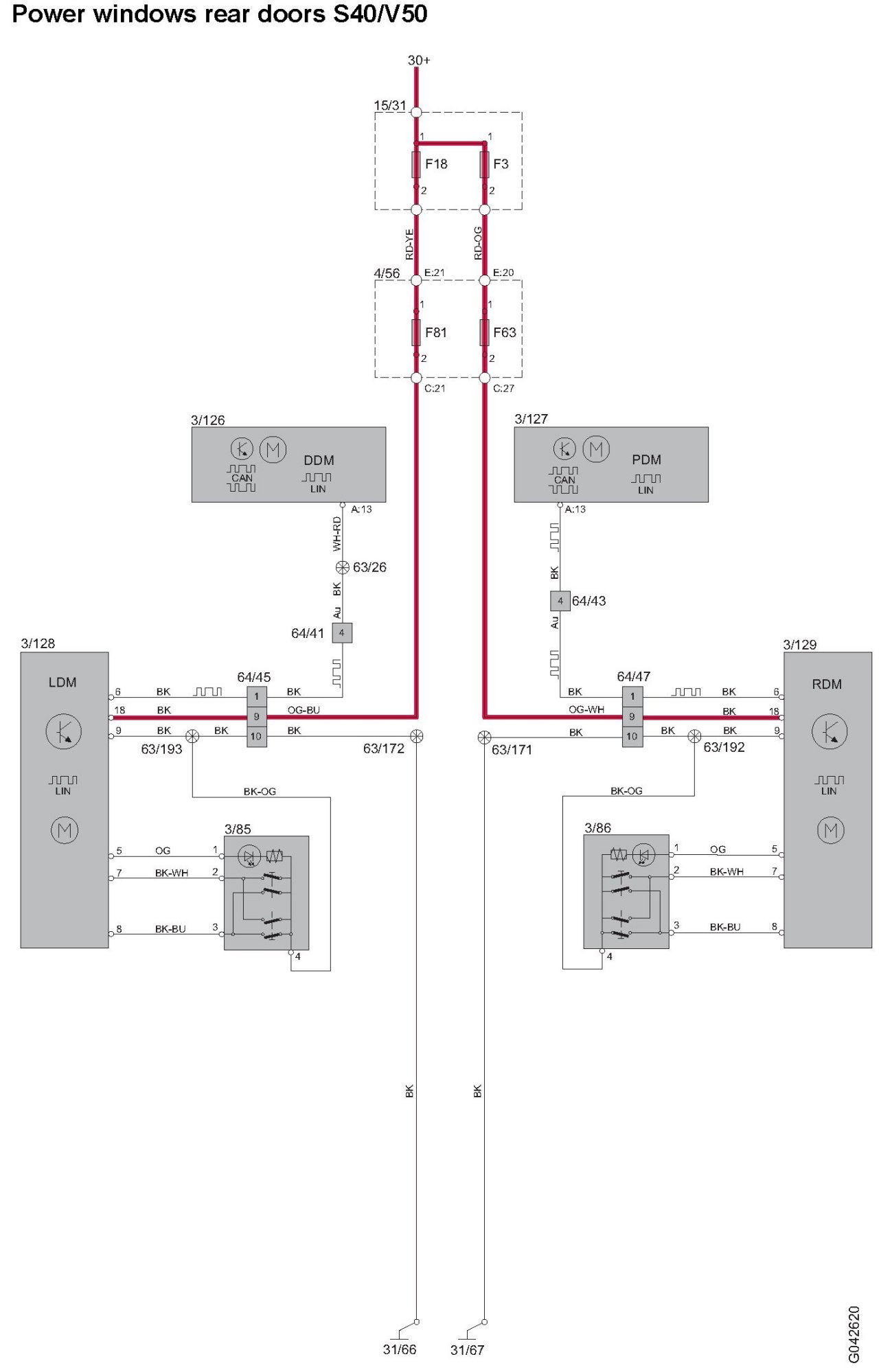

Power windows rear doors S40/V50


Power windows rear doors:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Numbers
