Power Windows Rear Doors

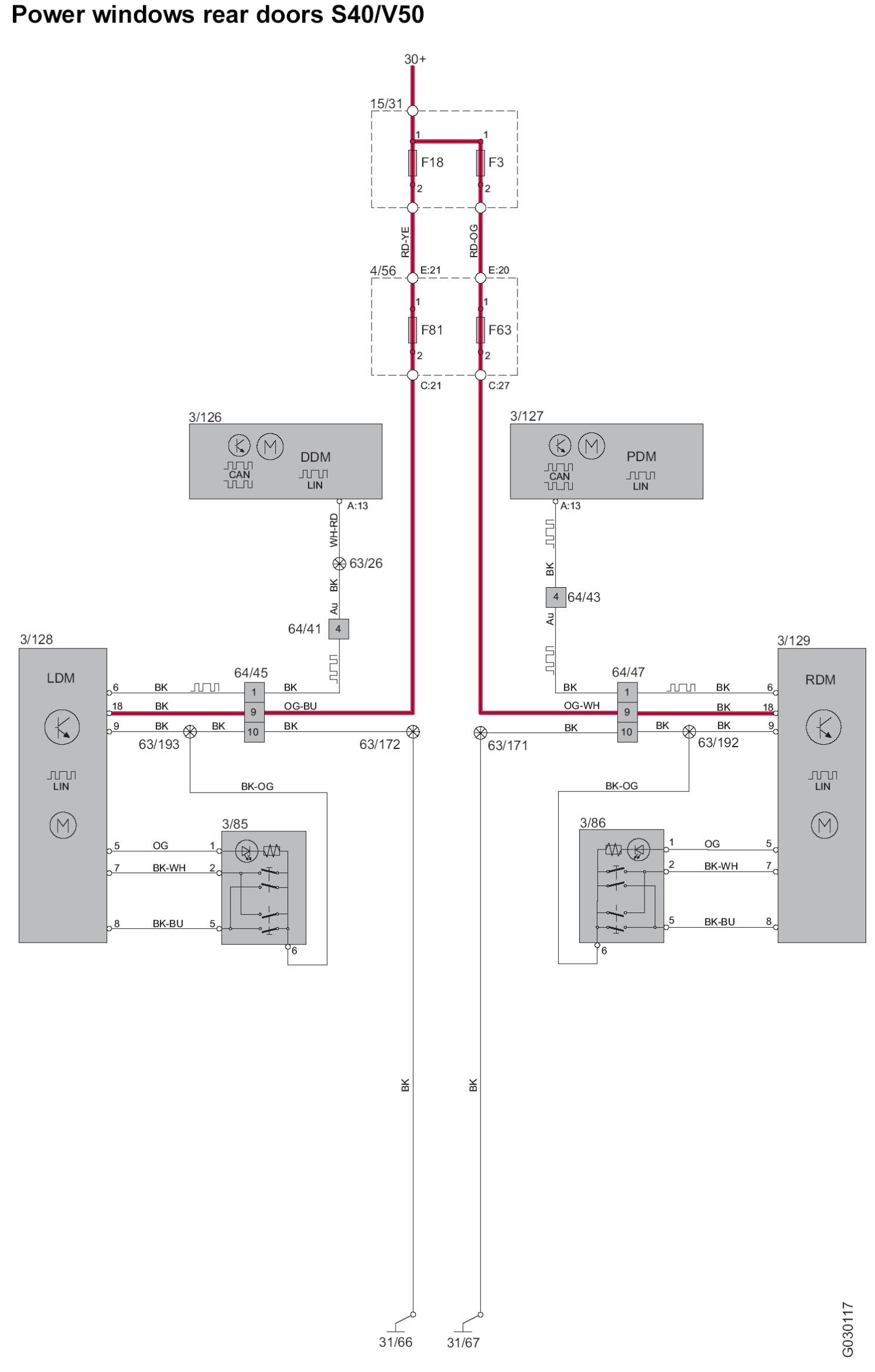

Power Windows Rear Doors S40/V50


Power windows rear doors:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
