Home >> Volvo >> 2010 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - Differential >> Control Unit >> Diagrams >> Electrical Diagrams

Electrical Diagrams

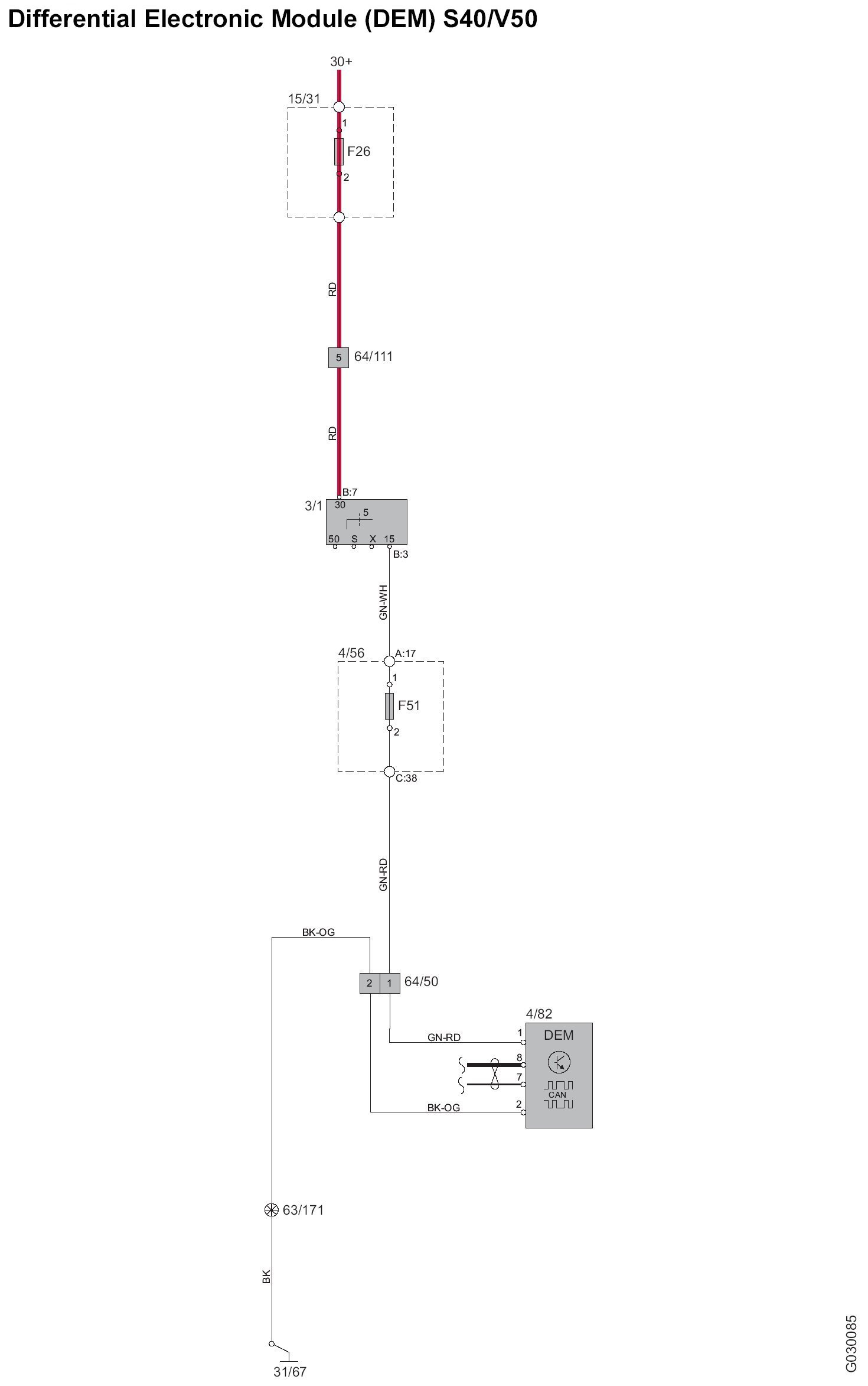

Differential Electronic Module (DEM) S40/V50


Differential Electronic Module (DEM):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
