Alternator: Service and Repair

Generator

Operation number: 32102-2

Removal

Note! Removal steps in this procedure may contain installation details.





Remove air filter module Refer to: Air filter module Service and Repair Air filter module Service and Repair

Remove the throttle body Refer to: Throttle body Removal and Replacement

Remove the auxiliaries belt Refer to: Tensioner accessory drive belt Service and Repair

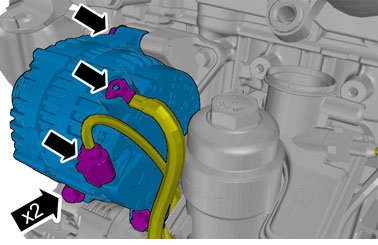

Remove the following items:
1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
