Home >> Volvo >> 2010 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Service and Repair >> Rotary Switch, Front Door Window Regulator

Rotary Switch, Front Door Window Regulator






Rotary switch, front door window regulator

Operation number: 36070-2

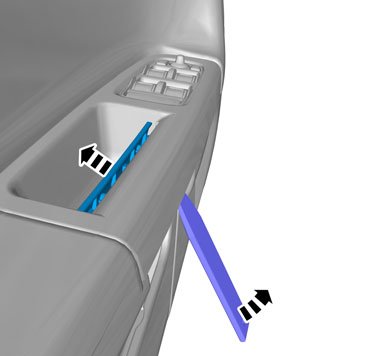

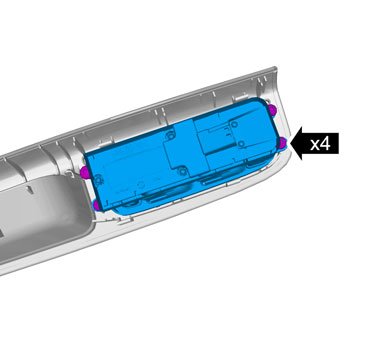

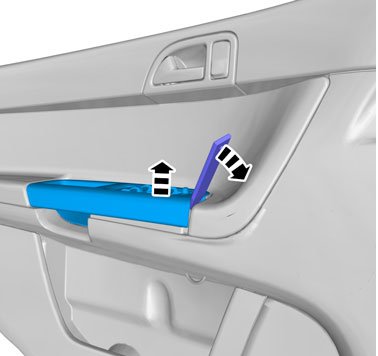

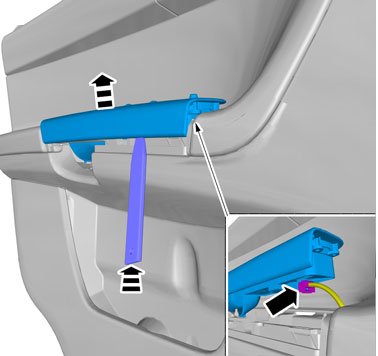

Removal

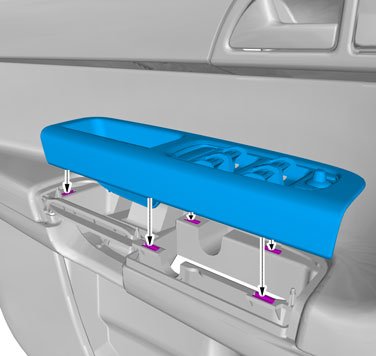

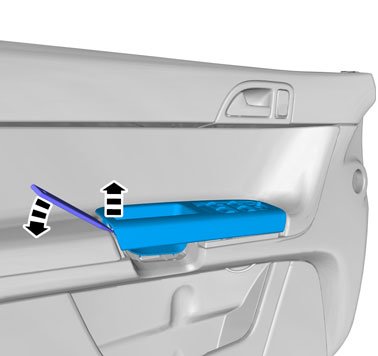

Installation





Caution! Only use moderate force.





Caution! Make sure that equal pressure is applied to the full length of the component.

Caution! Take extra care when handling the component.
