Rear Door Window Regulator Rotary Switch

Rear door window regulator rotary switch

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

Removing the switch/control panel

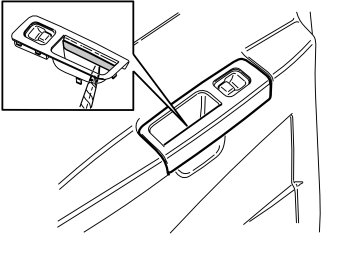

Using a weatherstrip tool, remove the cover from the inside of the door handle.

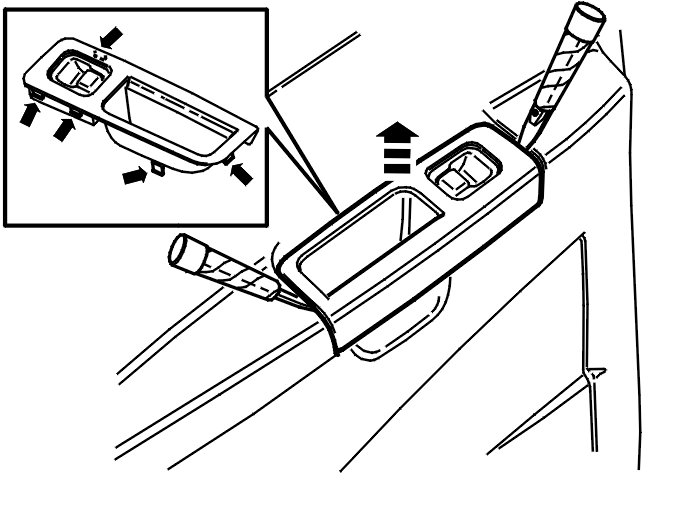

Remove:
- the switch/control panel. Pry straight up using a weatherstrip tool
- the 1 connector
- the 2 screws.

Installation

Installing the switch/control panel

Install:
- the 2 screws
- the 1 connector
- the switch/control panel
- the cover.
