Direction Indicators and Hazard Warning Flashers (Dual Xenon)



Direction Indicators And Hazard Warning Flashers (Dual Xenon) S40/V50

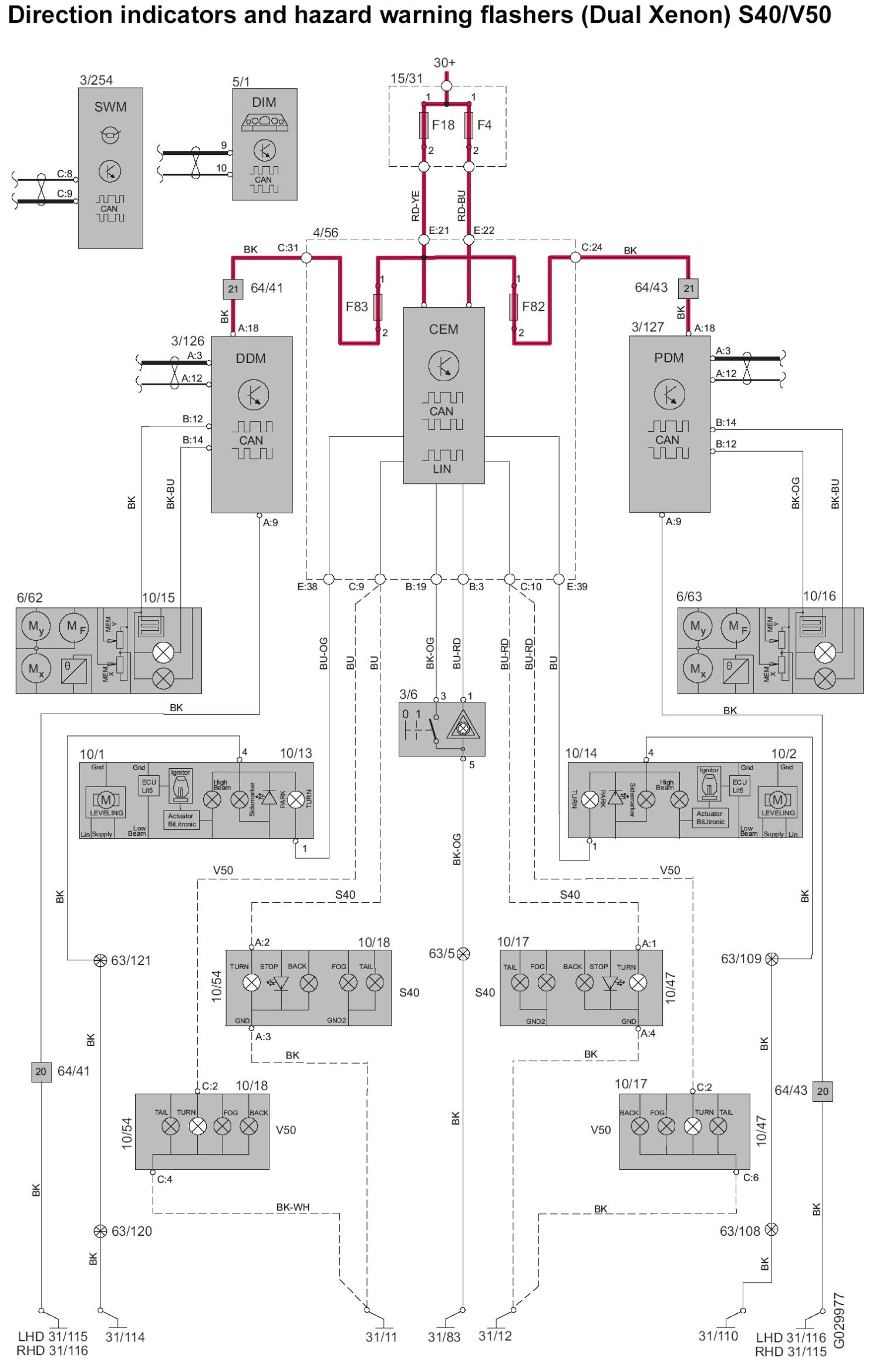

Direction indicators and hazard warning flashers (Dual Xenon):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
