Active Headlights, (Dual Xenon)

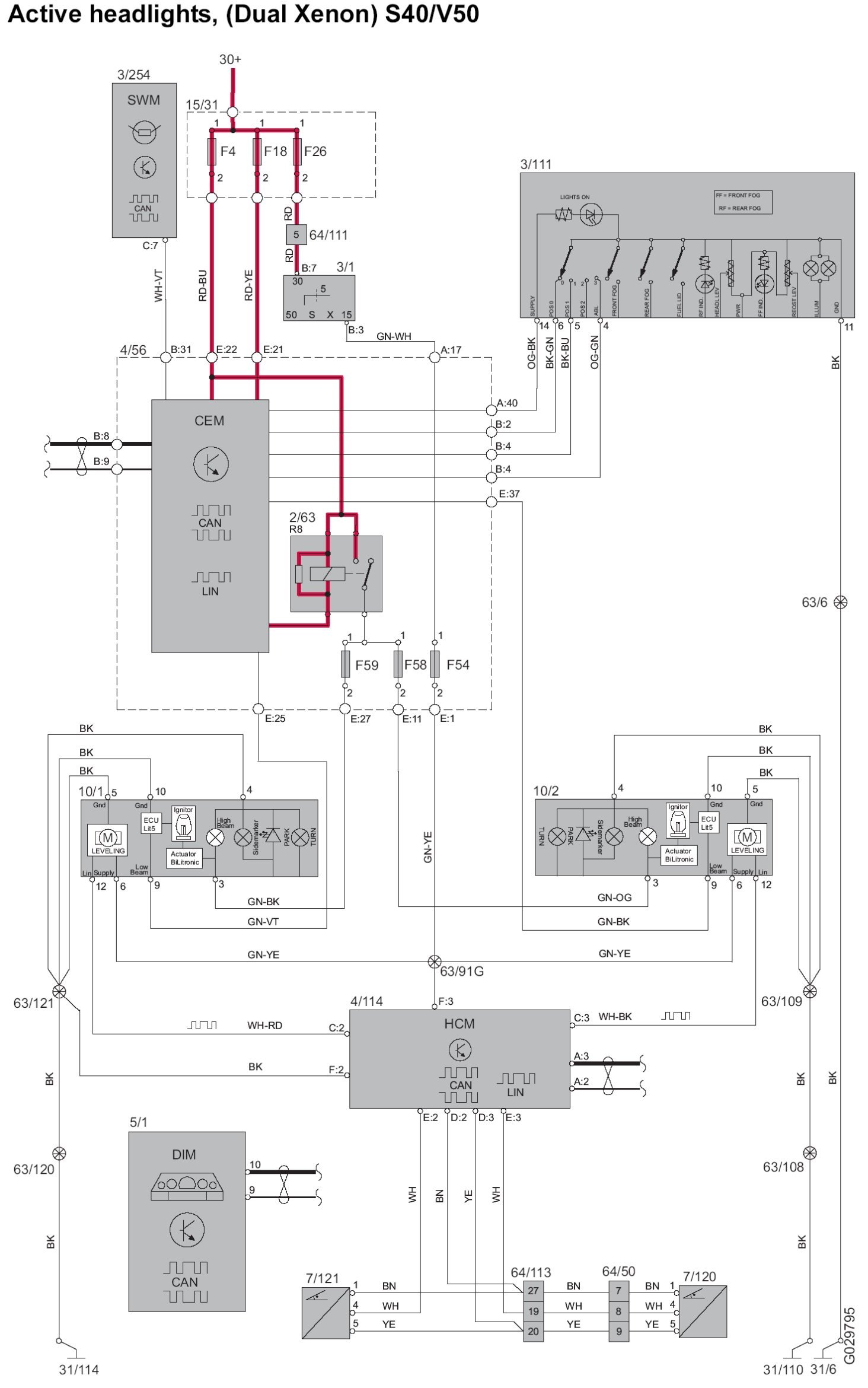

Active Headlights, (Dual Xenon) S40/V50


Active headlights, (Dual Xenon):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
