Camshaft Oil Seal: Service and Repair

Camshaft seal






Removal

Remove the variable valve timing unit Refer to: VVT unit Service and Repair

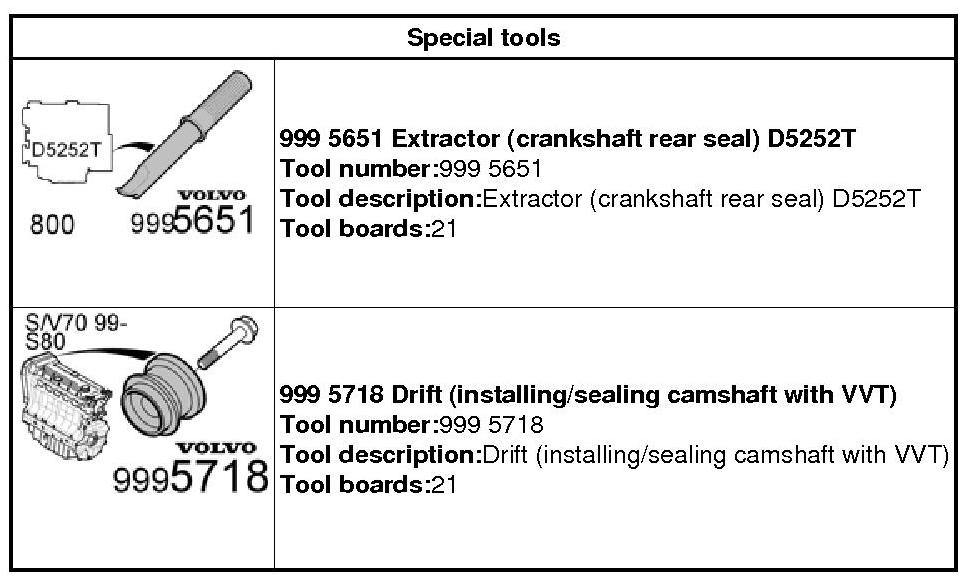

999 5651 Extractor 999 5651 Extractor

Installation

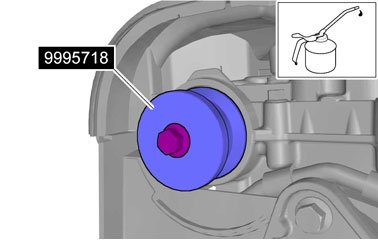

999 5718 Drift 999 5718 Drift





To install, reverse the removal procedure.
