Power Driver's Seat LHD



Power Driver's Seat LHD S40/V50

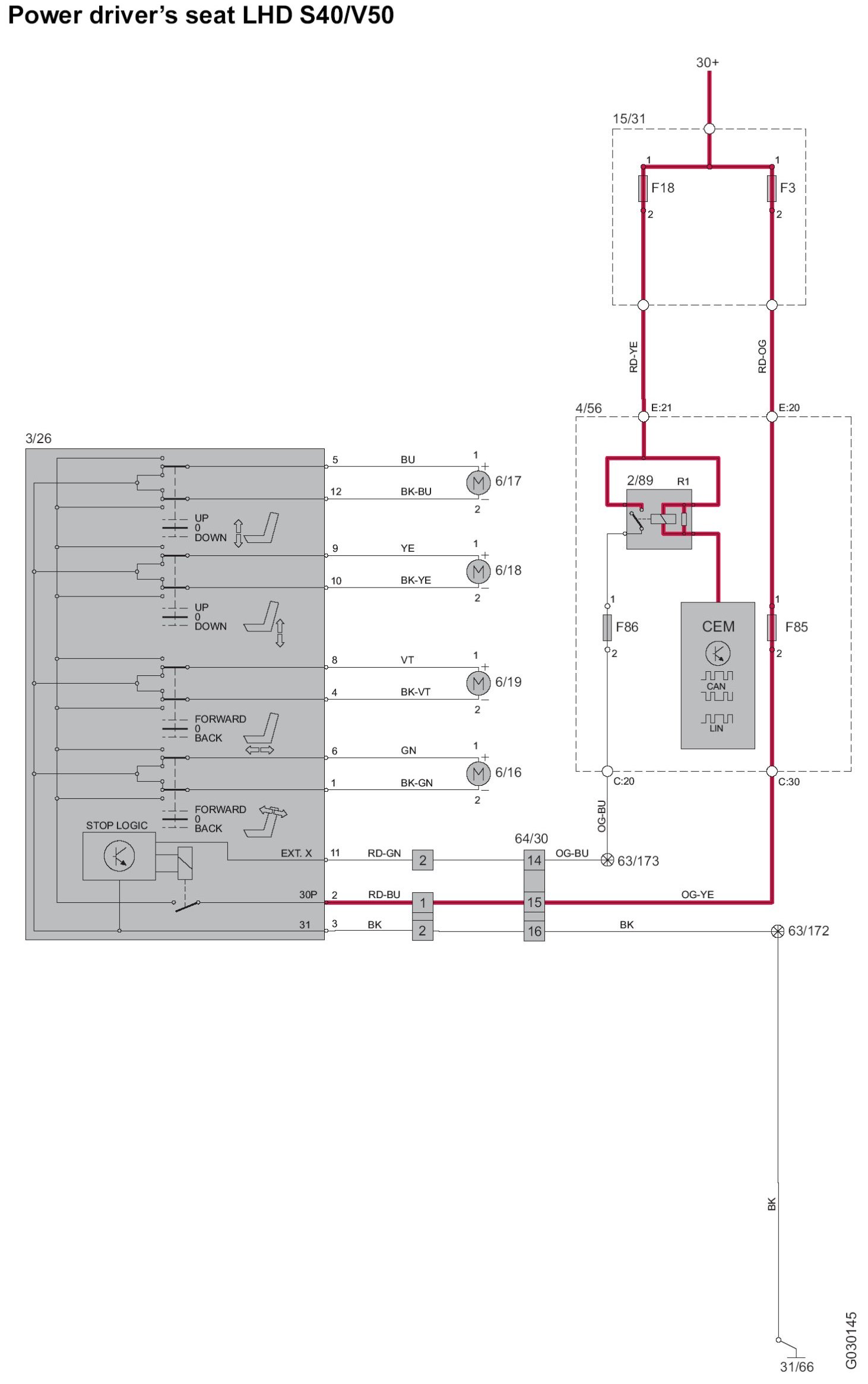

Power driver's seat LHD:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
