Mud Flaps, Front

Mud Flaps, front































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Mud Flaps, front





- Remove the front wheels.


Illustration A




- Remove the three screws at the rear edge of the wheel arch.

Illustration B





Applies to cars with painted door sill panels
- Remove the three screws at the rear edge of the wheel arch.
- Remove the stone-chip protection. It shall not be re-used.





- Clean as illustrated.





- Remove the backing paper from the tape (A).





- Position as illustrated.

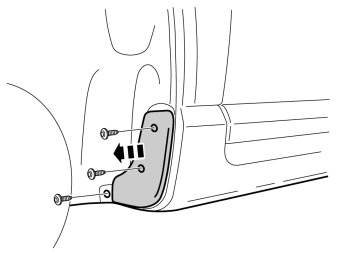

Install:
- the mud flap
- the new screws.
- Tighten the screws.





- Drill a new 5 mm (3/16) hole at the marking.





- Secure the pop rivet.

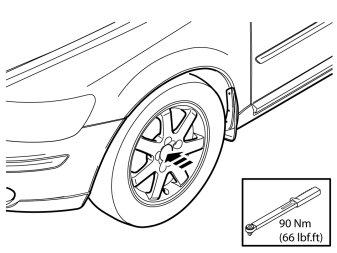

- Install the front wheel.
- Tighten to the correct torque.
