Signal Description, Power Seat Module (PSM)

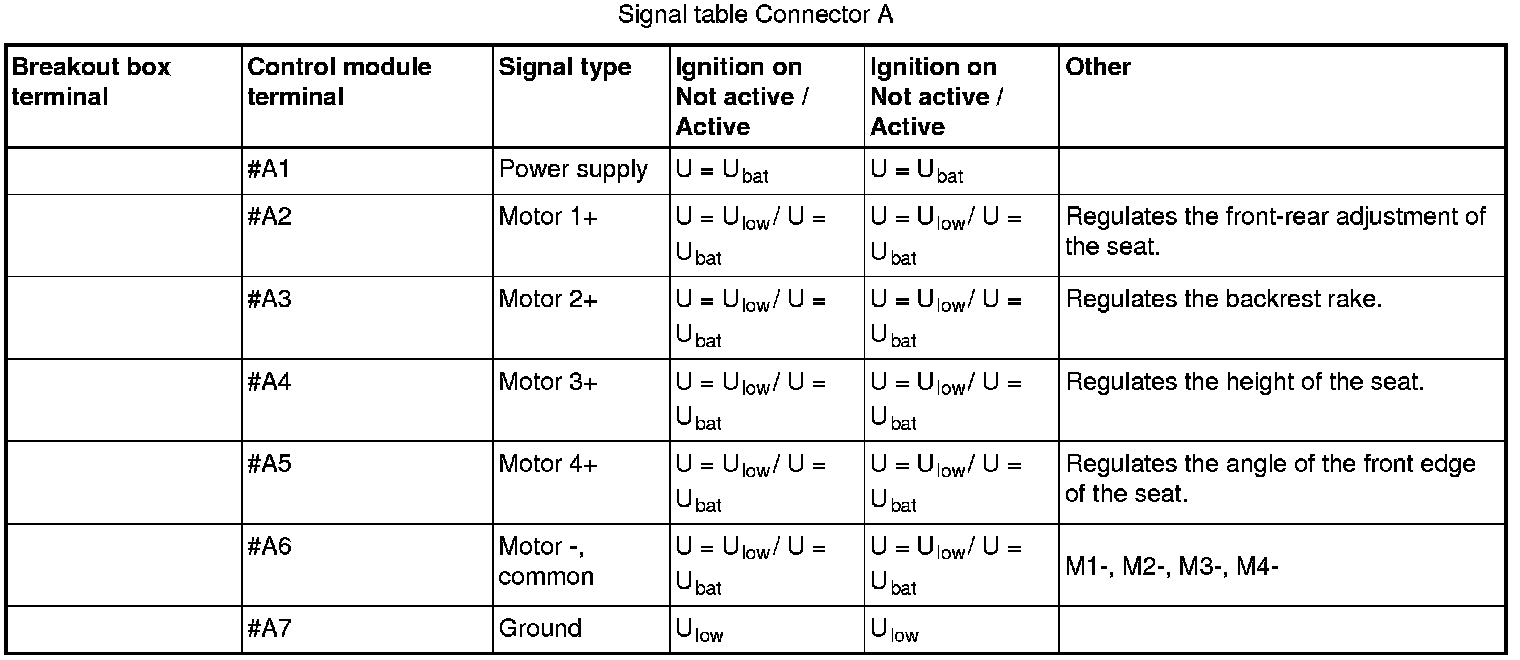

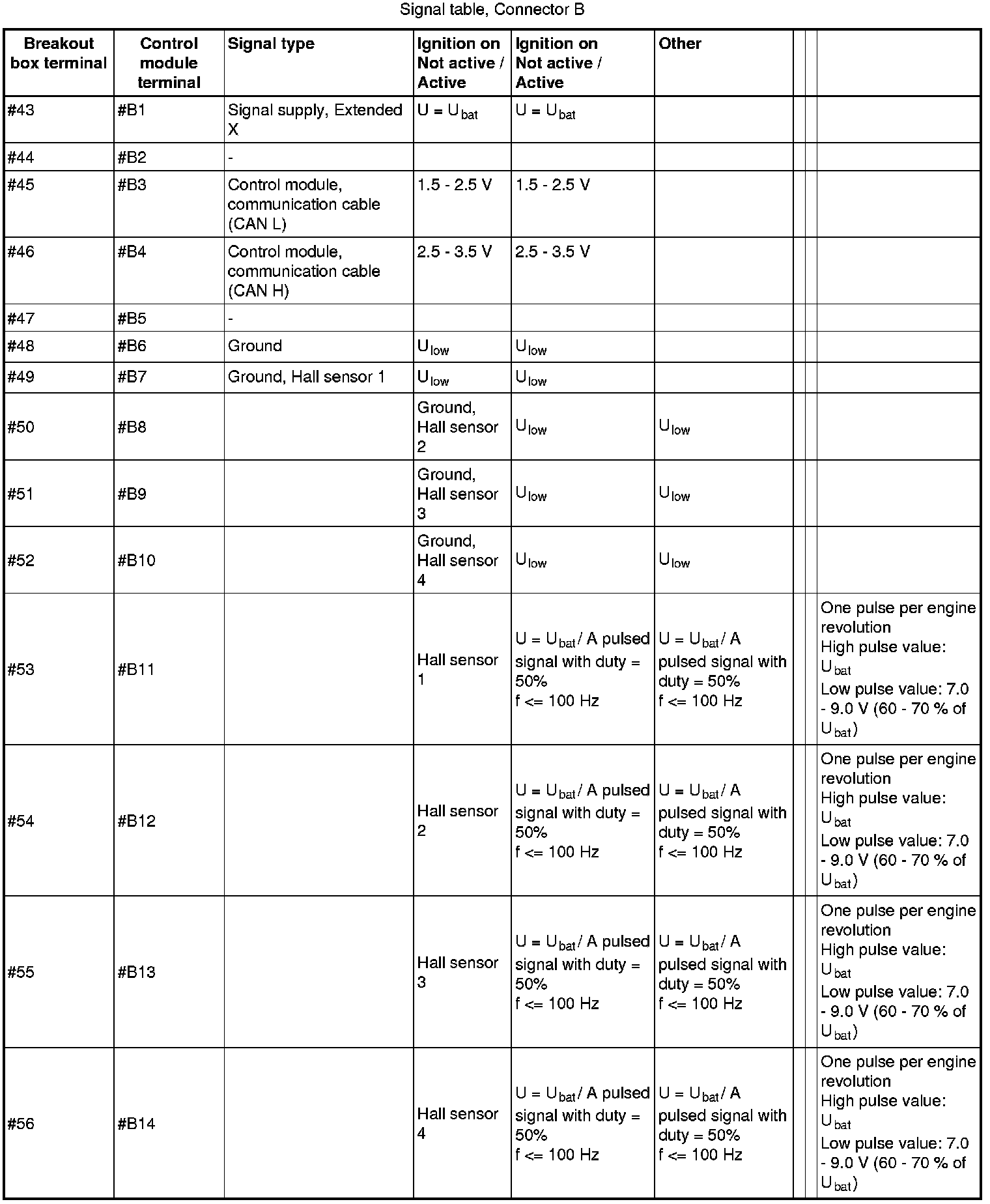

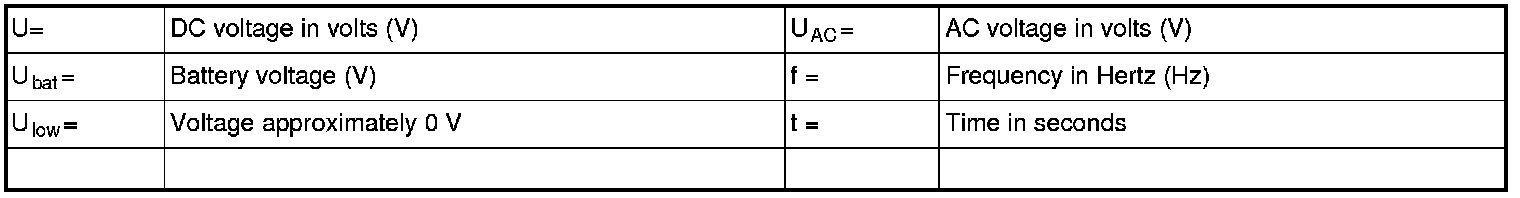

Signal specification

Connecting the breakout box and checking the ground terminals
Before taking readings, the breakout box and ground terminal must be checked.
Checking the voltage / ground terminal, L.H.D Checking Supply Voltage/Ground Terminal, Power Seat Module (PSM)
