Home >> Volvo >> 2010 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Child Safety Lock >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009

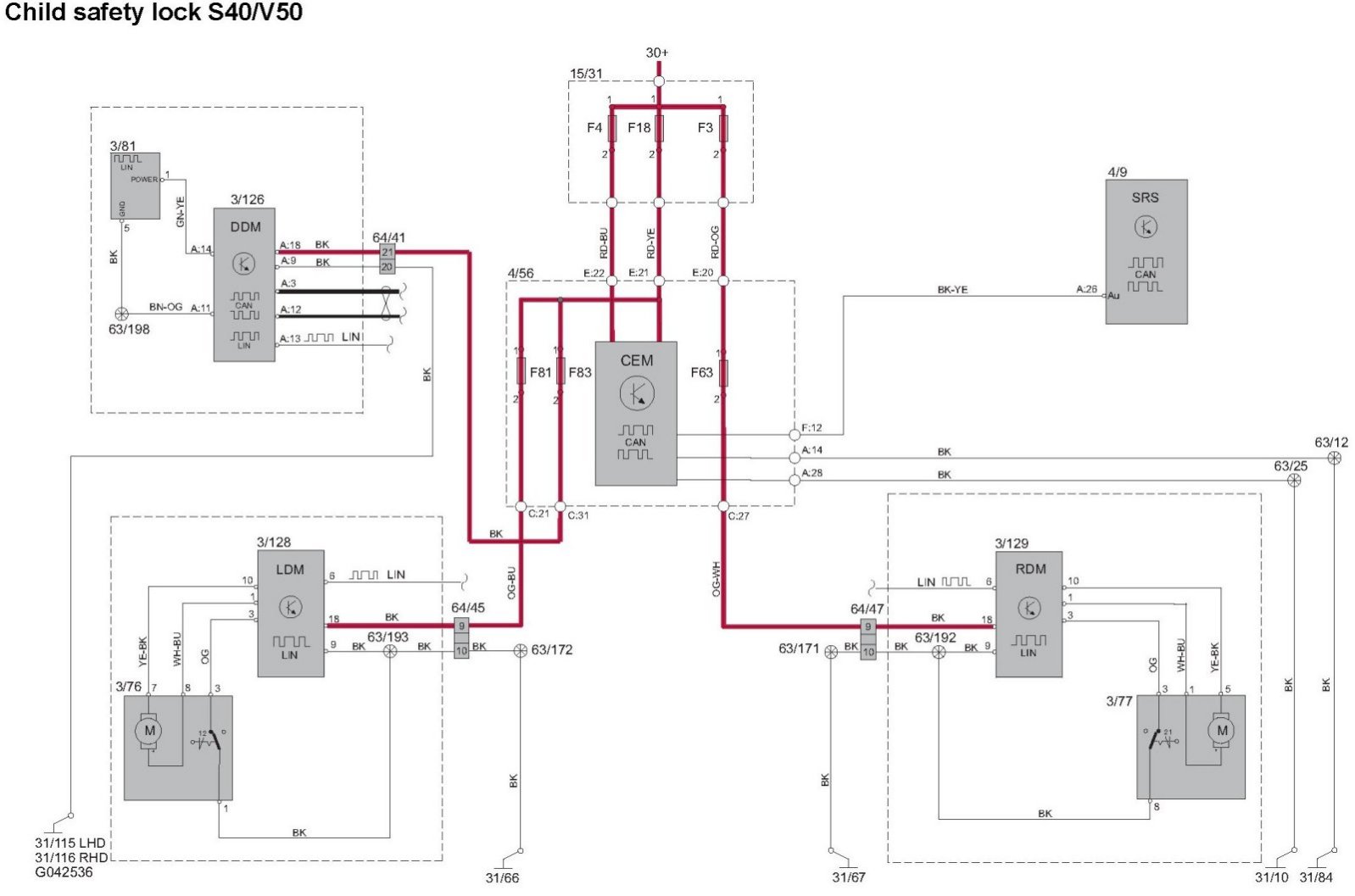

Child safety lock S40/V50


Child safety lock:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Numbers
