Electrical Diagrams

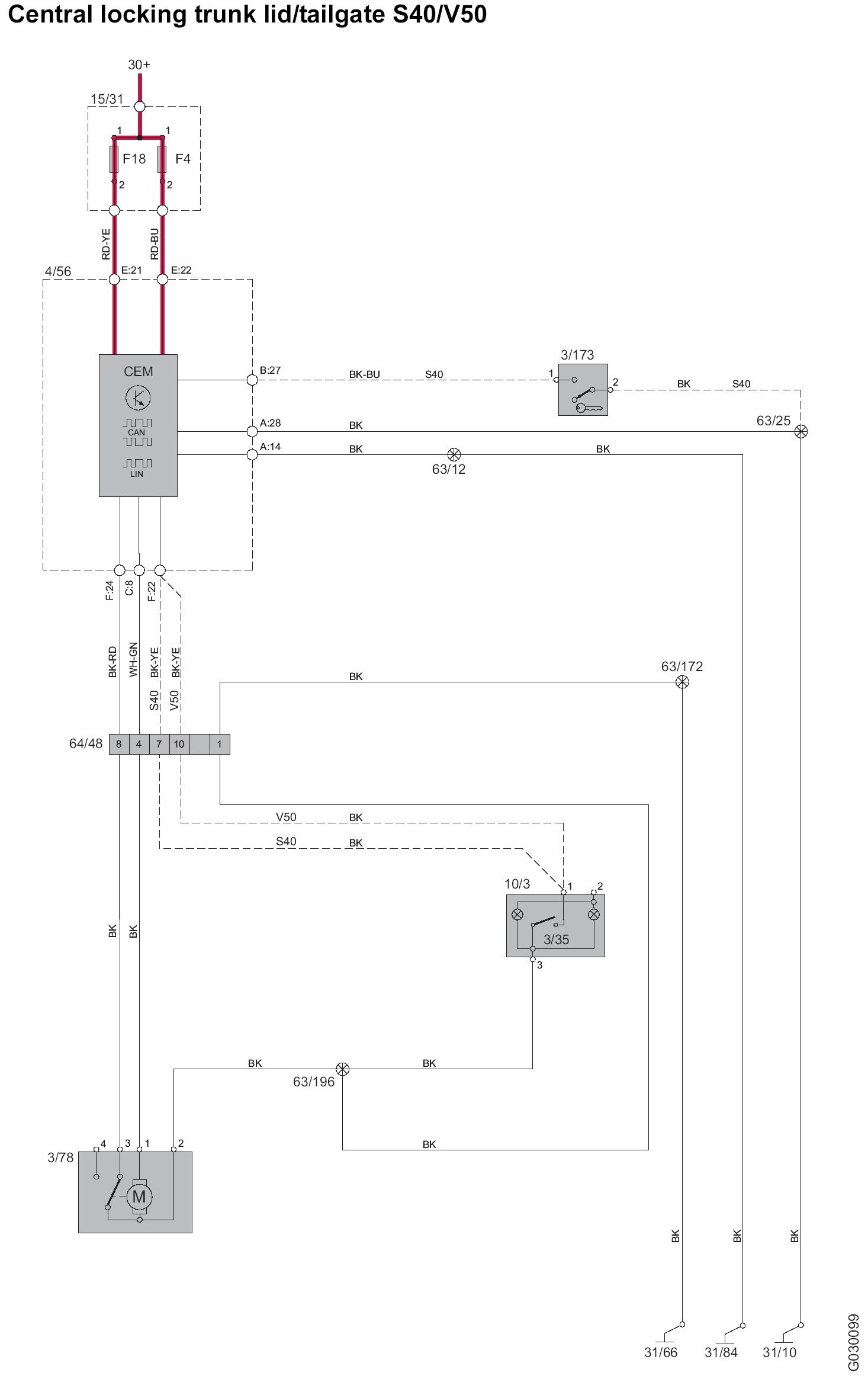

Central Locking Trunk Lid/tailgate S40/V50


Central locking trunk lid/tailgate:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
