Changes Introduced Up to and Including June 2009
Central Electronic Module (CEM)

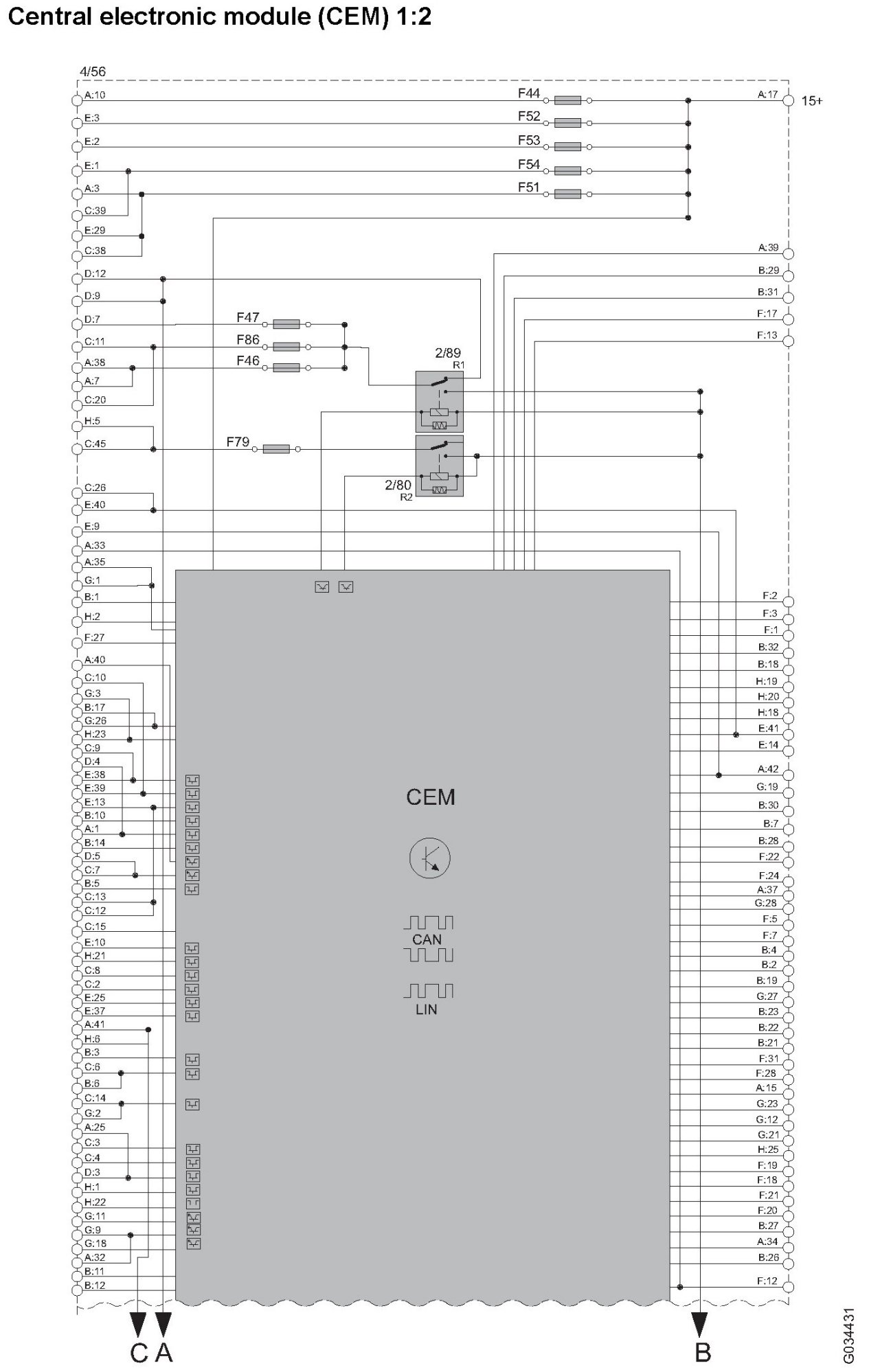

Central electronic module (CEM) 1:2:

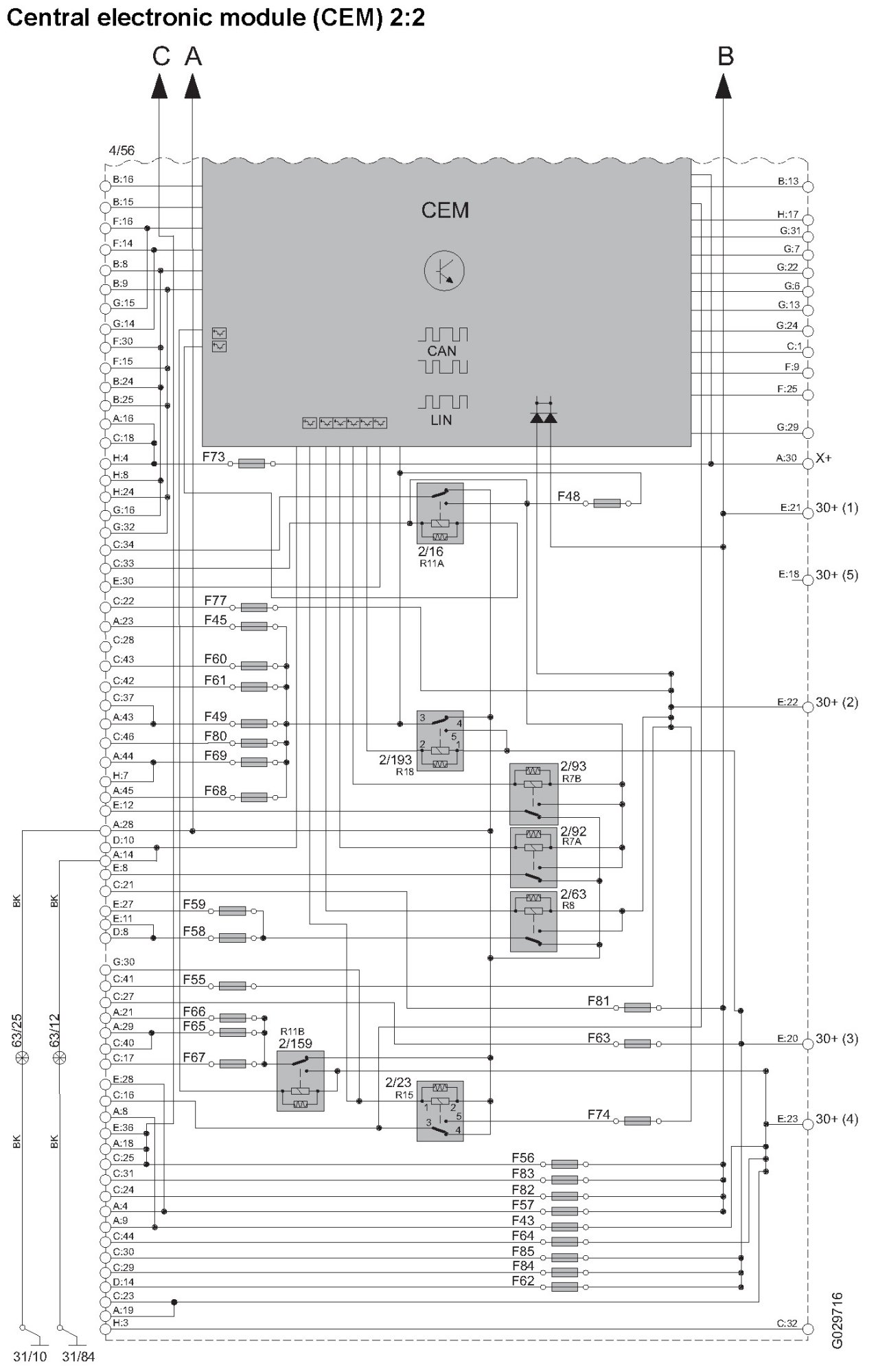

Central electronic module (CEM) 2:2:
Diagram Legend: Diagram Legend
Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
List of Components By Component Number: List of Components By Component Numbers
