Home >> Volvo >> 2010 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009



Keyless vehicle C30/S40/V50

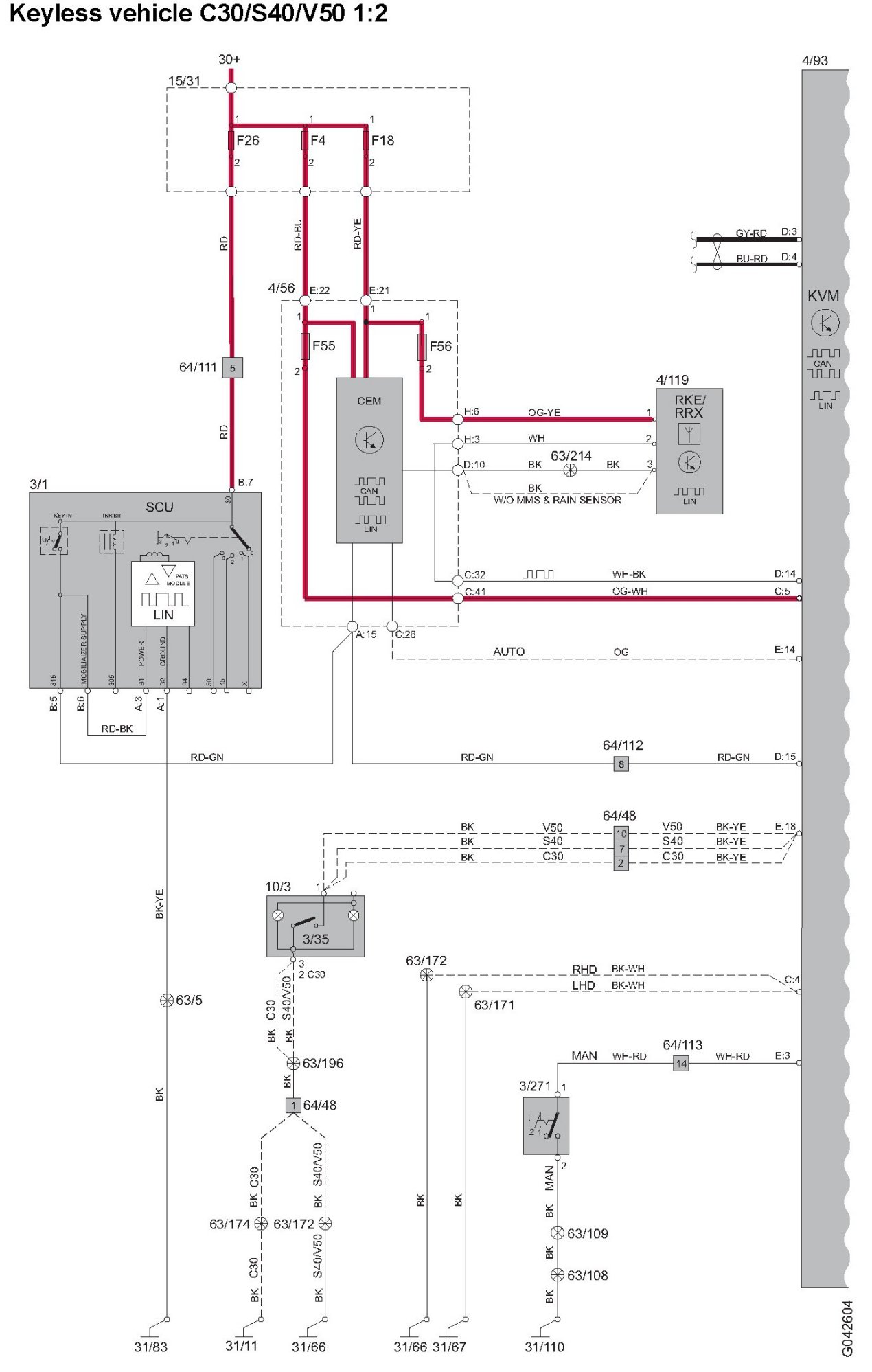

Keyless vehicle 1:2:

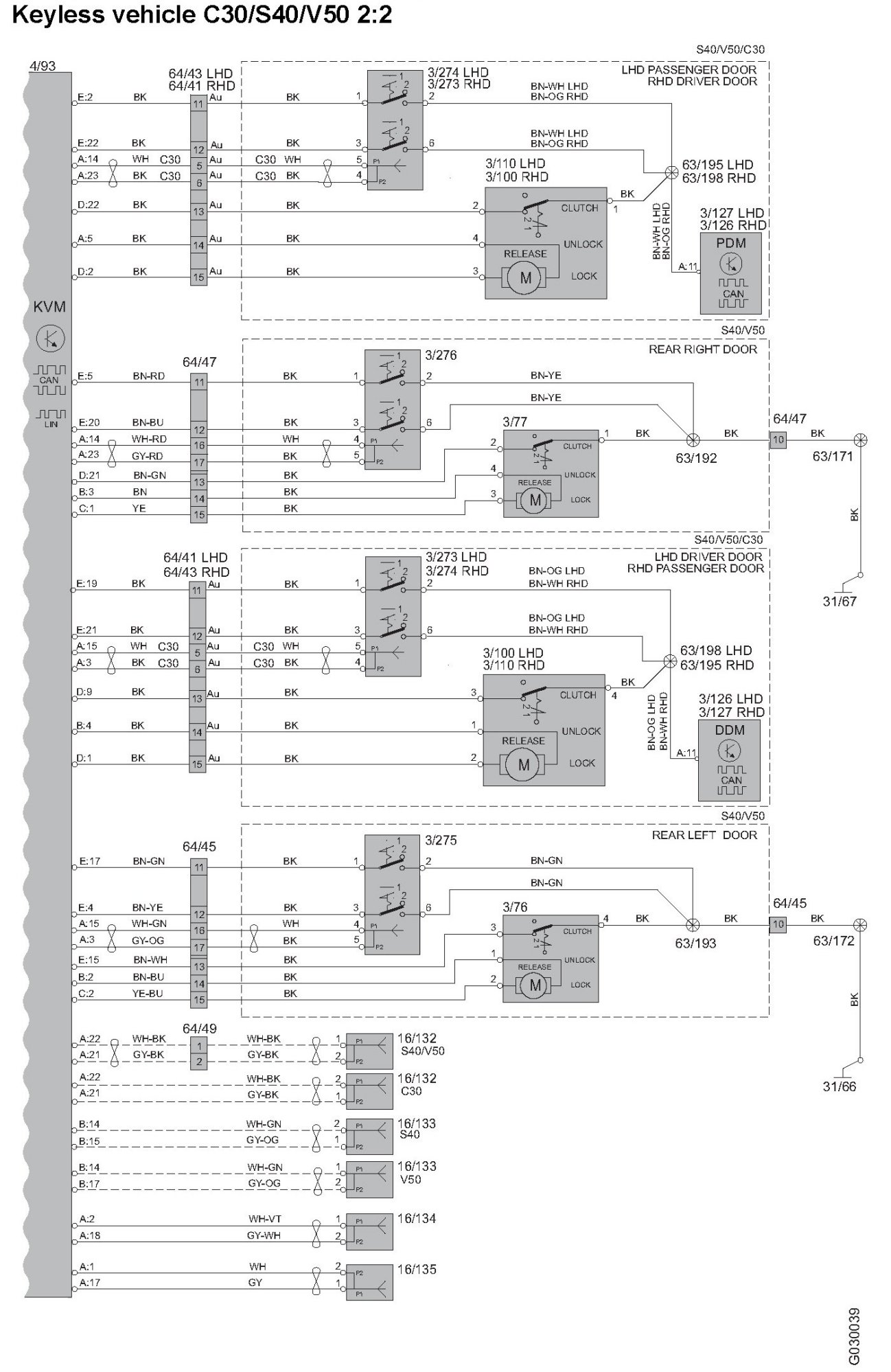

Keyless vehicle 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Numbers
