Antenna - Keyless Entry: Service and Repair

Antennas keyless vehicle module (KVM)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Hint: There are a total of eight antennas. Four are positioned along the center of the vehicle and four in the door handles.

Note! To replace the antennas in the door handle, see: Handle outer door front Service and Repair and Outer handle, rear door Service and Repair.

Method content

This method consists of:
- Antenna keyless vehicle module (KVM) front, replacing
- Antenna keyless vehicle module (KVM) reverse center console, replacing
- Antenna keyless vehicle module (KVM) spare wheel well, replacing
- Antenna keyless vehicle module (KVM) bumper bracket, replacing

Antenna keyless vehicle module (KVM) front, replacing

Removing the front antenna keyless vehicle module (KVM)





Remove:
- the center console. See: Floor console Floor Console.
- the 2 nuts
- the antenna
- the connector.

Installing the front antenna keyless vehicle module (KVM)

Install:
- the connector
- the antenna
- the 2 nuts
- the center console. See: Floor console Floor Console

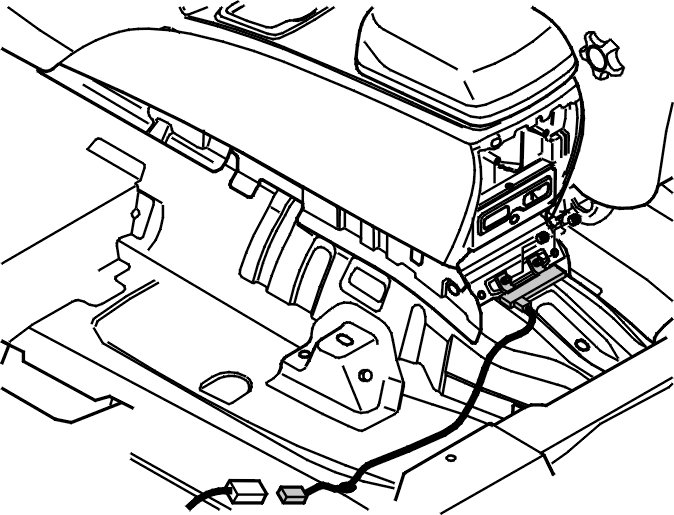

Antenna keyless vehicle module (KVM) reverse center console, replacing

Removing the antenna keyless vehicle module (KVM) reverse center console





Remove:
- left-hand front seat. See: Front seat Front Seat
- the cigarette lighter/electrical socket rear. See: Extra power socket 12V Extra Power Socket 12V
- the bracket for the control module, 2 nuts.
Push the carpet to one side.

Remove:
- the connector
- the antenna
- the 2 clips.

Installing the antenna keyless vehicle module (KVM) reverse center console





Install:
- the connector
- the antenna
- the 2 clips.
Fold back the carpet.

Install:
- the bracket for the control module, 2 x nuts
- the cigarette lighter/electrical socket rear. See: Extra power socket 12V Extra Power Socket 12V
- left-hand front seat. See: Front seat Front Seat

Antenna keyless vehicle module (KVM) spare wheel well, replacing

Removing the antenna keyless vehicle module (KVM) spare wheel well





Remove:
- cargo compartment carpet
- the antenna
- the connector.

Installing the antenna keyless vehicle module (KVM) spare wheel well

Install:
- the connector
- the antenna

Note! The antenna cable must end up in the groove.

Install the cargo compartment carpet.

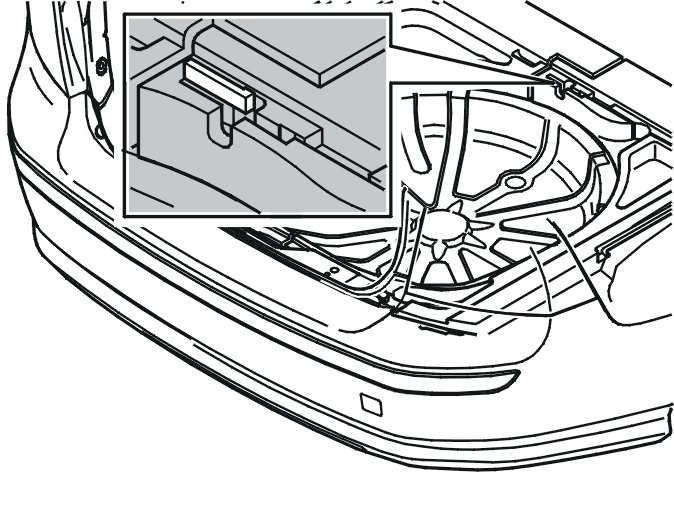

Antenna keyless vehicle module (KVM) bumper bracket, replacing

Removing the antenna keyless vehicle module (KVM) bumper bracket





Remove:
- the casing for the rear bumper. See: Cover bumper rear Cover Bumper Rear.
- the antenna, fold out the catches at the lower edge
- the connector.

Installing the antenna keyless vehicle module (KVM) bumper bracket

Install:
- the connector
- the antenna, fold out the catches at the lower edge
- the casing for the rear bumper. See: Cover bumper rear Cover Bumper Rear
