Home >> Volvo >> 2010 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Immobilizer/Steering Column Lock Module (SCL) >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009

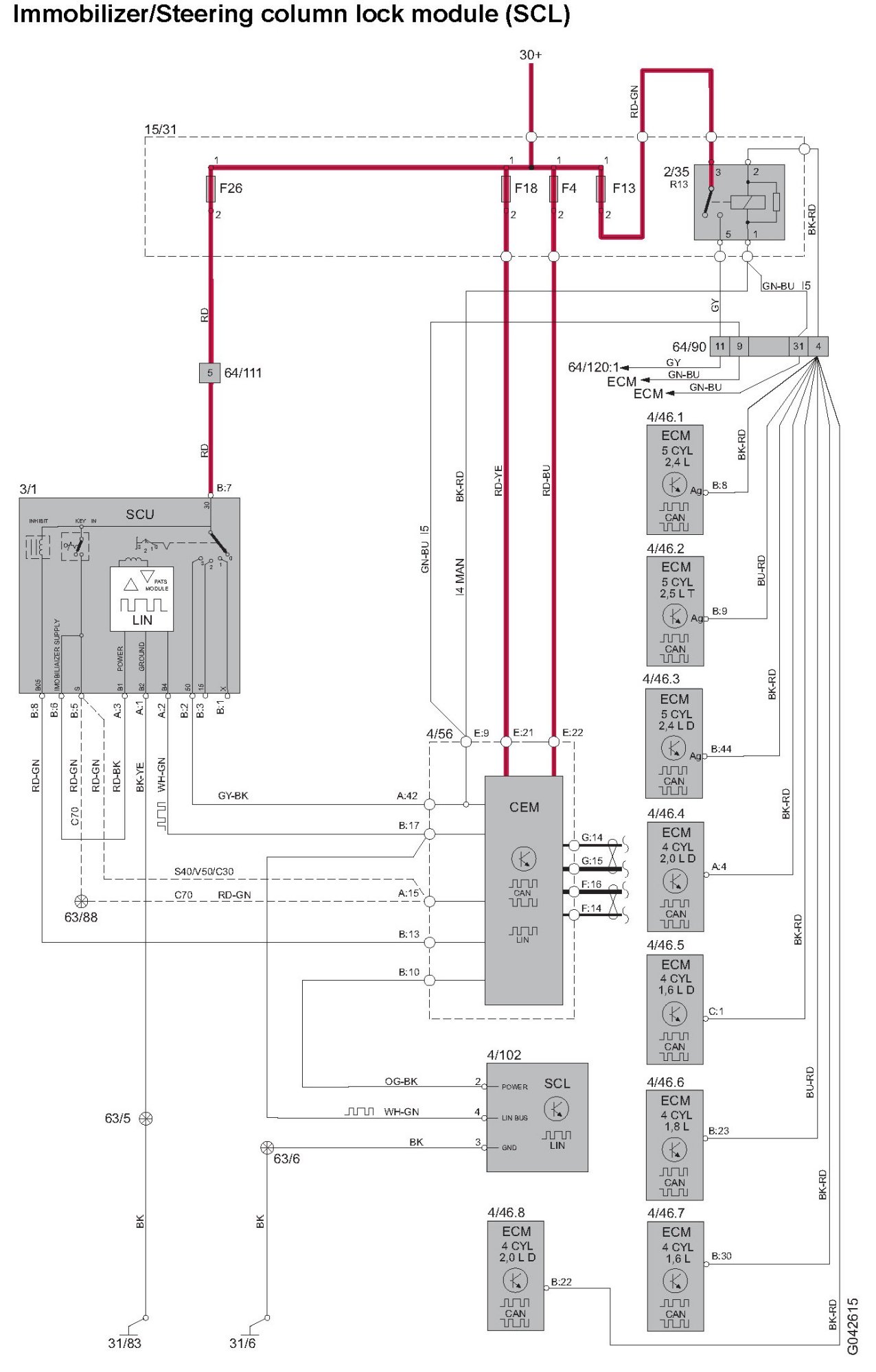

Immobilizer/Steering column lock module (SCL)


Immobilizer/Steering column lock module (SCL):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Numbers
