Motion Sensor, Front

Motion sensor, front

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

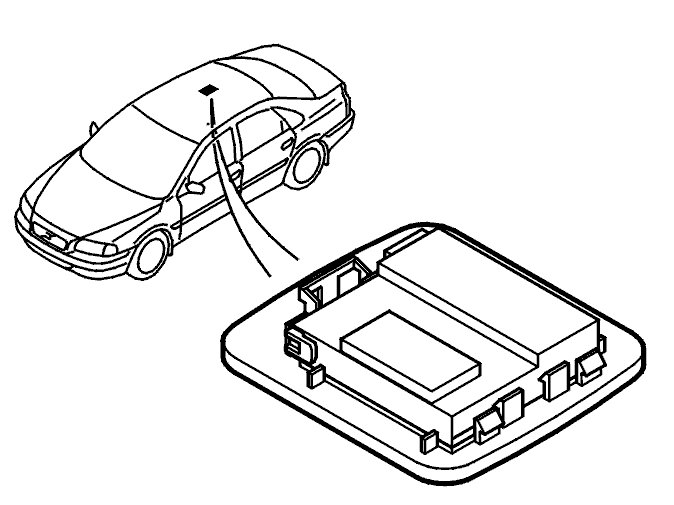

Removing the mass movement sensor module (MMS)




Remove the cover and sensor from the headlining.
Disconnect the connector.

Installation

Installing the mass movement sensor module (MMS)
Connect the connector.
Install the cover together with the sensor.

Note! When installing a new front mass movement sensor (MMS) as an accessory, see the installation instructions.
