Engine Support Insulator, Rear

Engine support insulator, rear

Operation number: 21818-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the air filter housing Refer to: Air cleaner housing Service and Repair

Remove battery Refer to: Battery Removal and Replacement




Torque: M6, 10 Nm

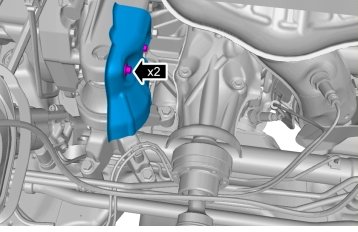

Remove the catalytic converter Refer to: Catalytic converter Service and Repair

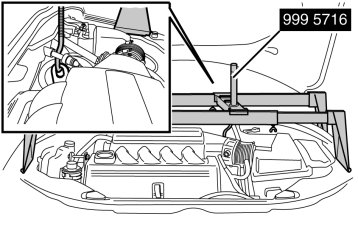

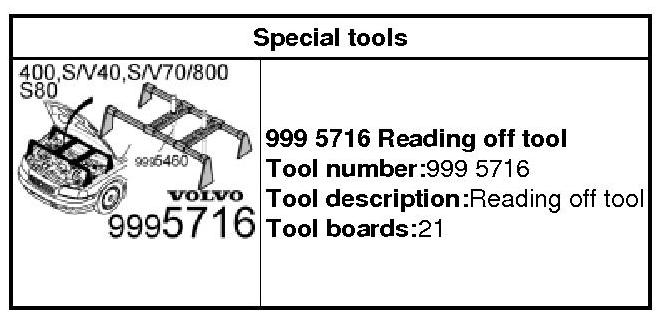

999 5716 Reading off tool 999 5716 Reading Off Tool




Torque: M6, 10 Nm

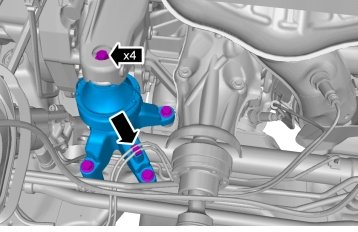

Torque: M10, 50 Nm




Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
