Refrigerant Pressure Sensor / Switch: Locations

Pressure Sensors

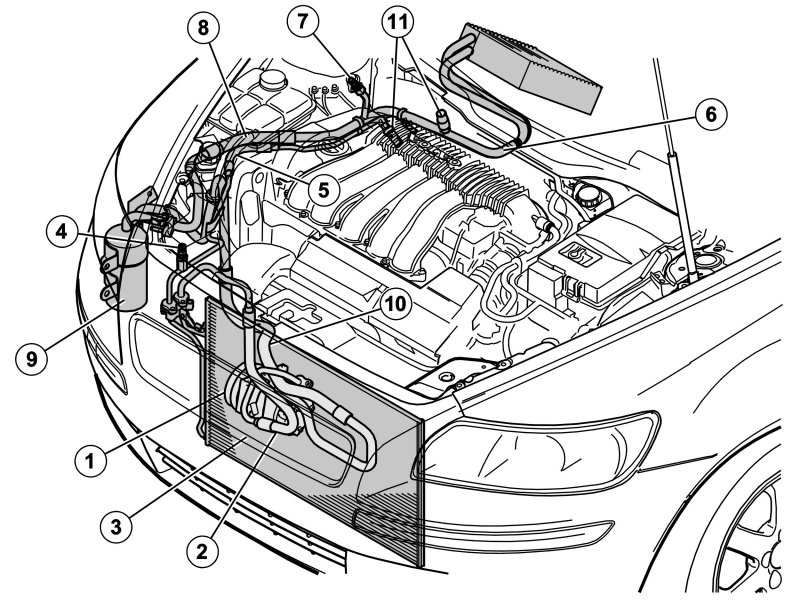

Locating Components In The Engine Compartment:

1. Compressor
2. The pipe / hose between the compressor and the condenser
3. Condenser
4. Service valve HT, draining / vacuum pumping
5. Pipe / hose between condenser and expansion valve
6. The pipe between the expansion valve and the evaporator
7. Service valve LT, draining / filling / vacuum pumping
8. Pipe / hose between evaporator and receiver
9. Receiver
10. Pipe / hose between receiver and compressor
11. 2 pressure sensors.
