Changes Introduced Up to and Including December 2008

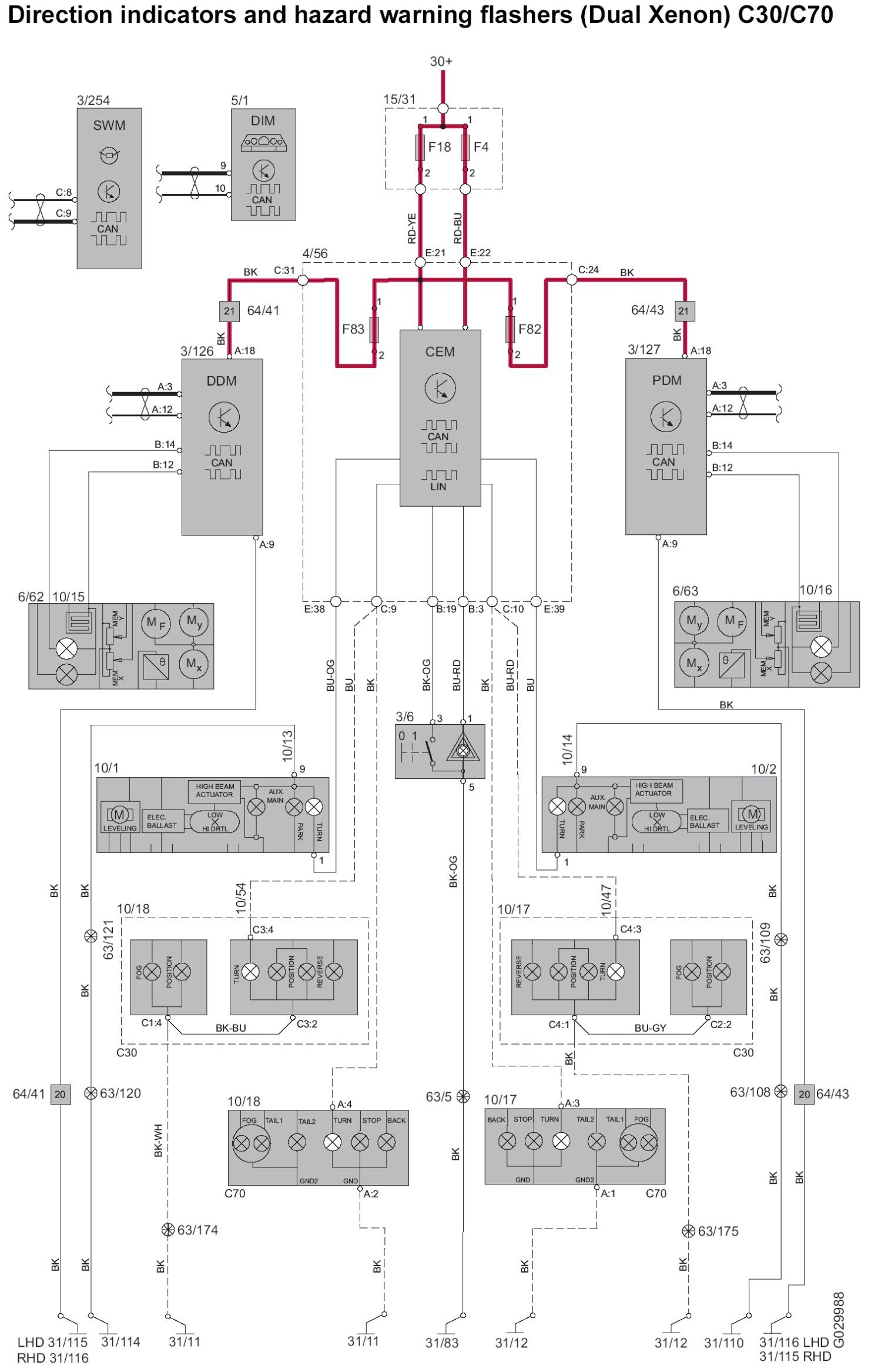

Direction Indicators And Hazard Warning Flashers (Dual Xenon) C30/C70


Direction indicators and hazard warning flashers (Dual Xenon):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
