High and Low Beam, (Dual Xenon)

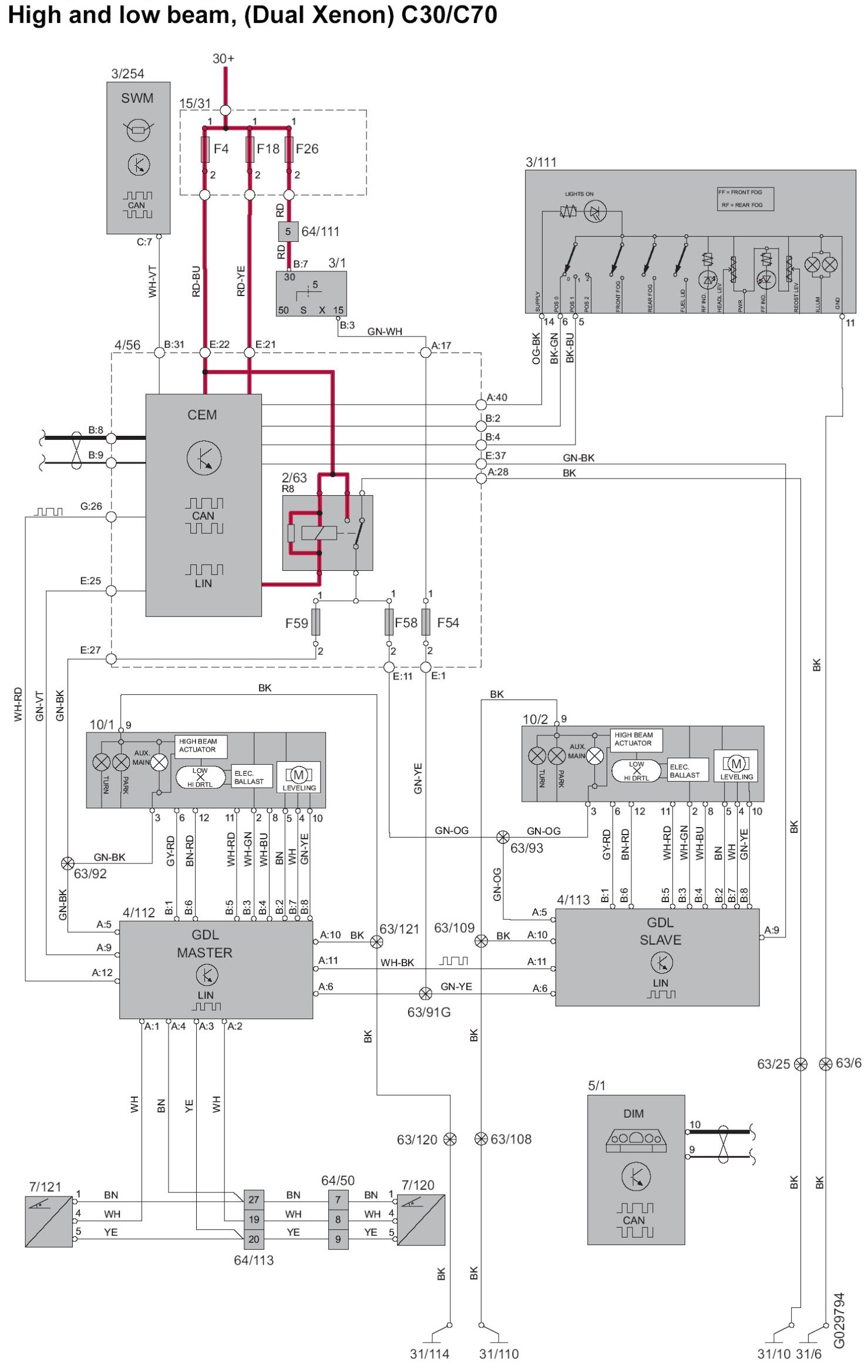

High And Low Beam, (Dual Xenon) C30/C70


High and low beam, (Dual Xenon):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
