Home >> Volvo >> 2010 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams >> Changes Introduced Up to and Including June 2009

Changes Introduced Up to and Including June 2009

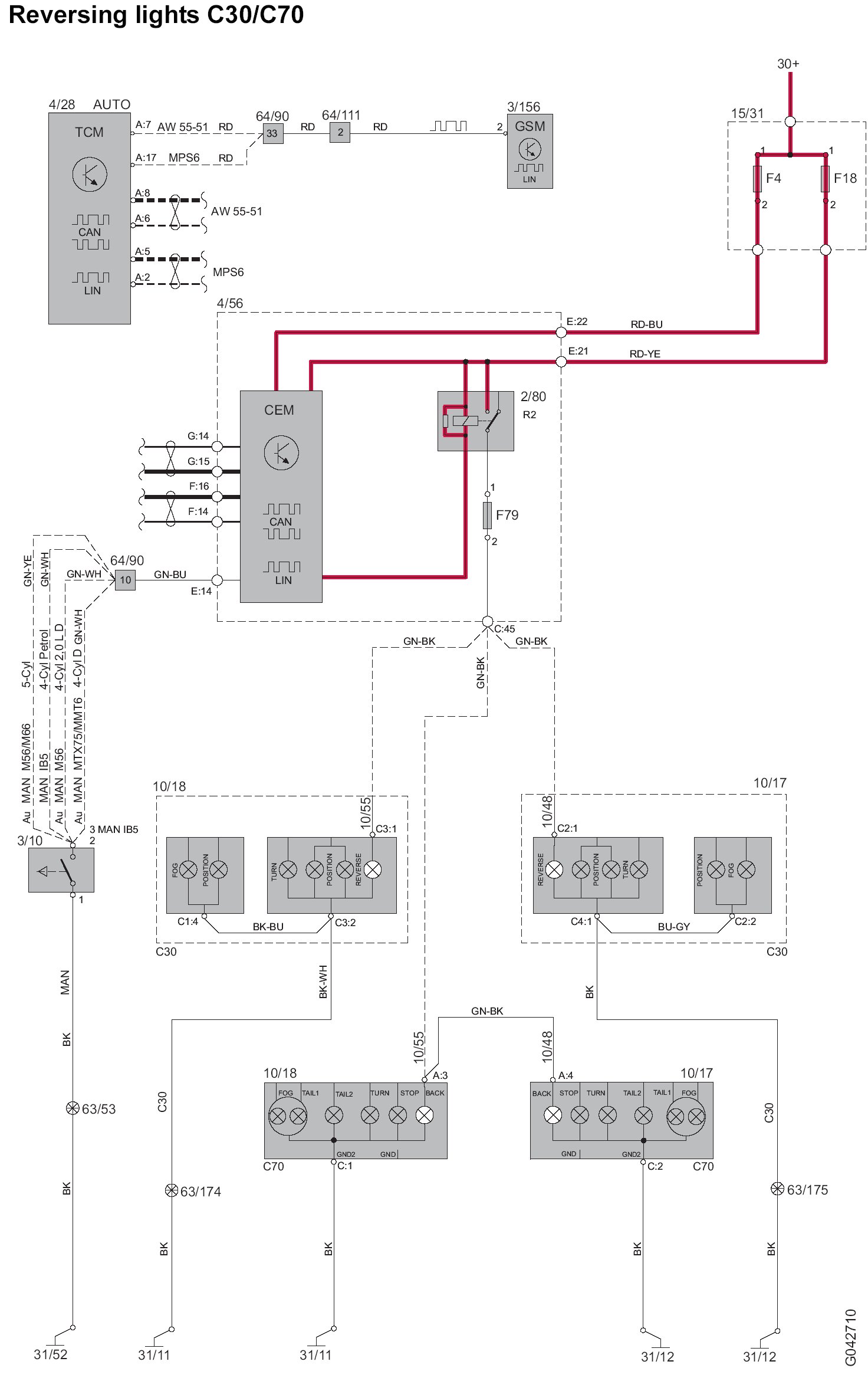

Reversing Lights C30/C70


Reversing lights:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
