Engine - Oil Leak From Front Of Engine
TIE - Technical JournalTitle Oil leak from piston cooling valve
Ref No US21508.3.0 en-GB
Issuer -
Partner 3US7510 Volvo Cars North America
Func Group 2210 Func Desc oil pump and line
Status Released
Status Date 2010-07-14
Issue date 2010-07-07
Reference VIDA, VSTG

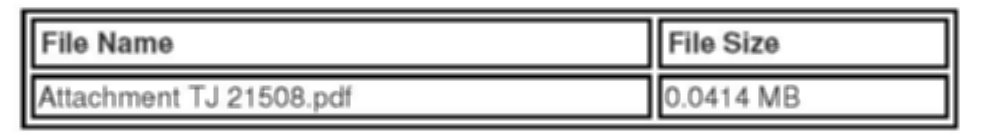

Attachment

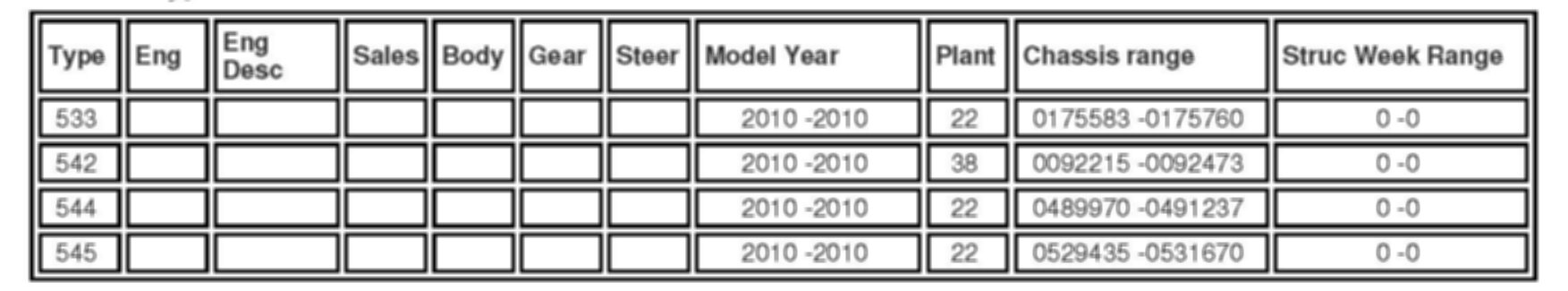

Vehicle Type
CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
When diagnosing an oil leak from the front of the engine, attention should be paid to the piston cooling valve.
PRODUCT MODIFICATION: After the chassis ranges in the TJ header, the tooling at the engine factory was improved in order to prevent leaks in this area.

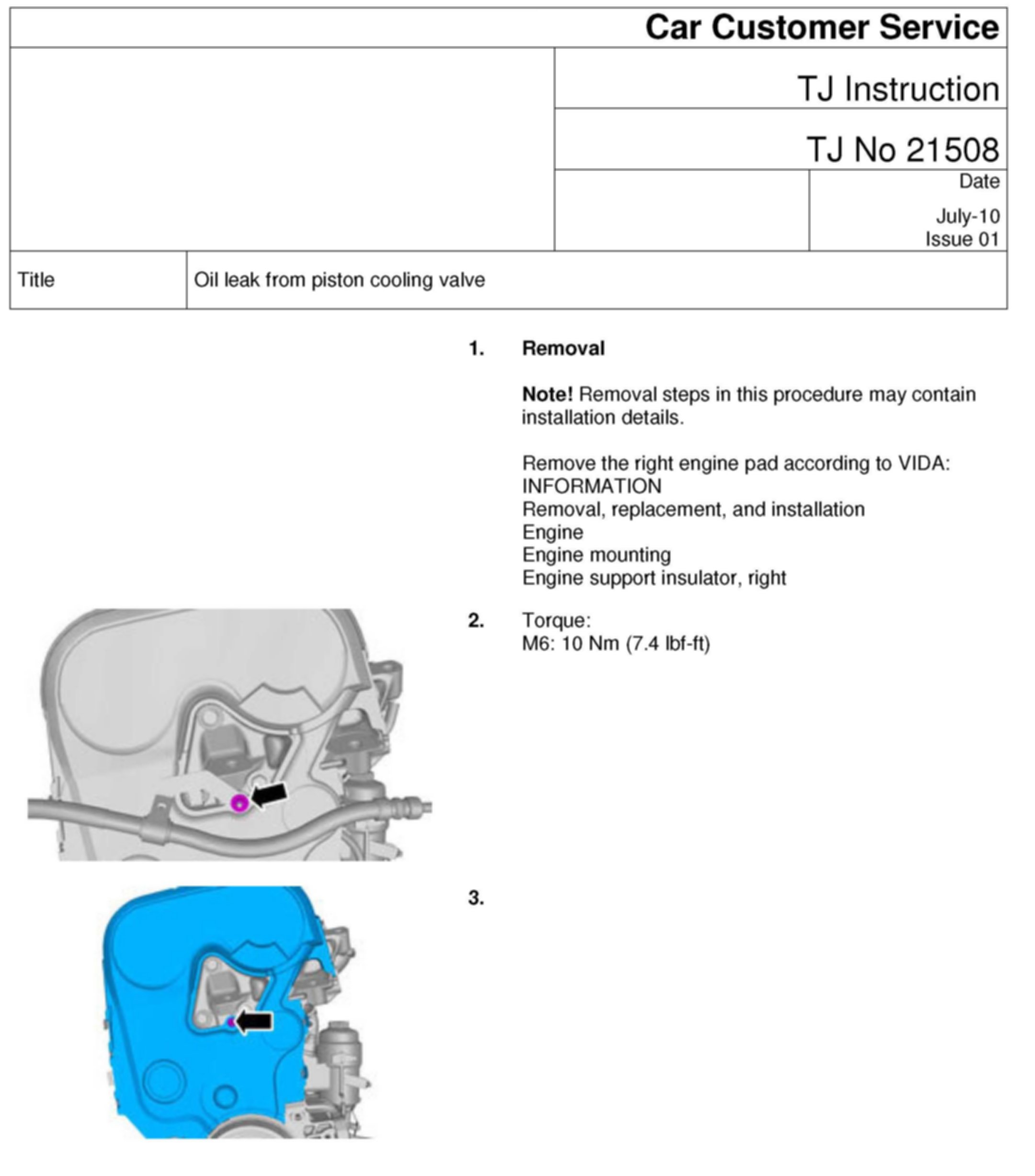

SERVICE: If an oil leak is present from the piston cooling valve, please follow the attached instructions and replace the valve.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 22124-2 - Piston cooling valve replace - See VSTG
Car Customer Service
