Connecting Rod: Specifications














Connecting Rod Fasteners
Install new fasteners
First pass 15 Nm
Second pass 25 Nm
Final pass Tighten 100°

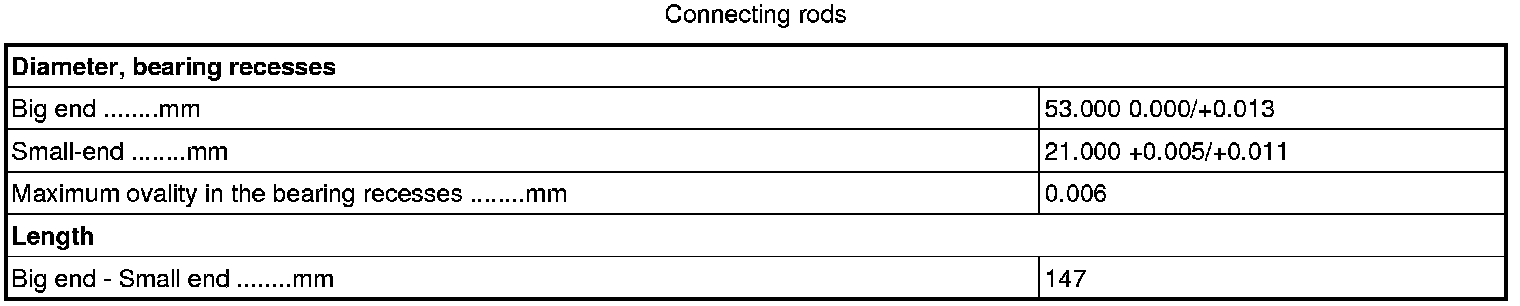

Connecting Rods
